Description

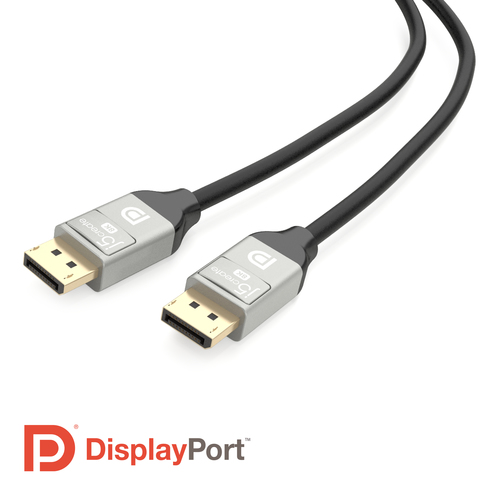

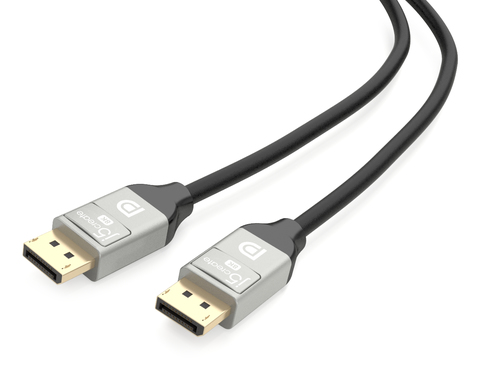

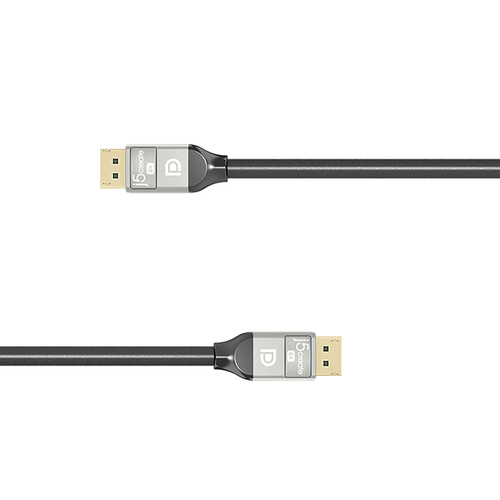

j5create JDC43 8K DisplayPort™ Cable, Black and Grey, 2 m, 2 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
The JDC43 is an 8K DisplayPort™ cable that transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, or 4K UHD (4096 × 2160) at 120 Hz. It also supports 3D. The theoretical bandwidth is up to 32.4 Gbps.
The JDC43 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission.

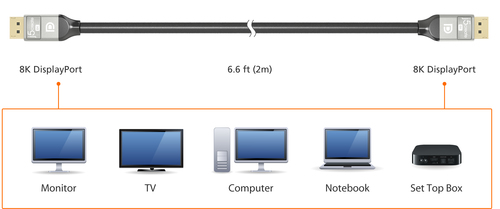

Latched connectors give the 8K DisplayPort™ cable a more secure connection. The JDC43 8K DisplayPort™ Cable allows you to connect a DisplayPort™ from a laptop, desktop or set-top box to a high-res monitor, HDTV or projector with DisplayPort™ input.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JDC43-N |
| Our part no. | CE58424 |
| EAN | 4712795082104 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0.2 kg |
| Features | |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2160, 7680 x 4320 |
| Supported video modes | 1080p, 2160p, 4320p |
| Maximum refresh rate | 60 Hz |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black, Grey |
| Cable material | Copper |
| Cable shielding | Aluminum mylar foil |
| Number of shielding layers | 3 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Plastic |
| AWG wire size | 28 |
| Data transfer rate | 32.4 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 156 g |
| Packaging data | |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 39 mm |
| Package weight | 210 g |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case GTIN (EAN/UPC) | 24712795082108 |
| Warranty period | 2 year(s) |
| Country of origin | China |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 235 mm |
| Master (outer) case gross weight | 5.44 kg |
| Products per master (outer) case | 18 pc(s) |
