Description
j5create JCD375-N USB-C™ Modular Multi-Adapter with 2 Kits, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 10,100,1000 Mbit/s, Silver, White, MicroSD (TransFlash), SD, 4K Ultra HD

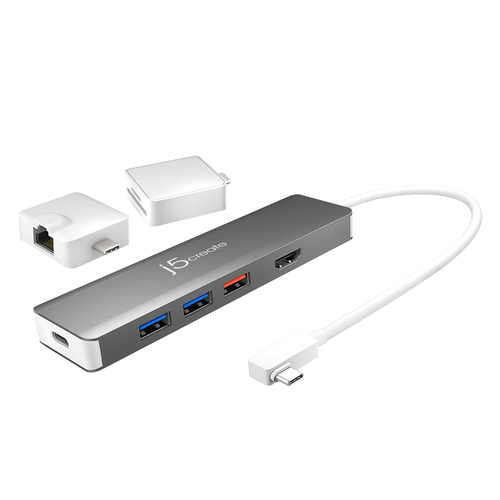

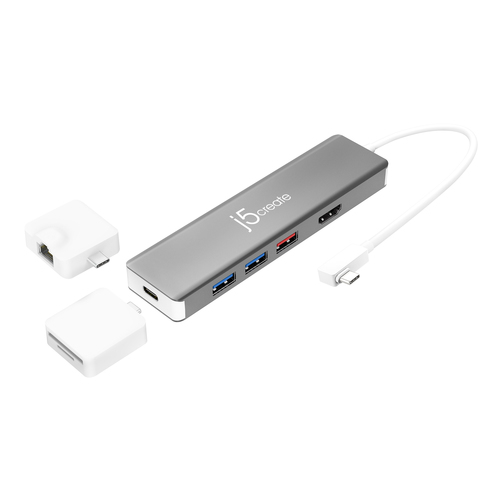

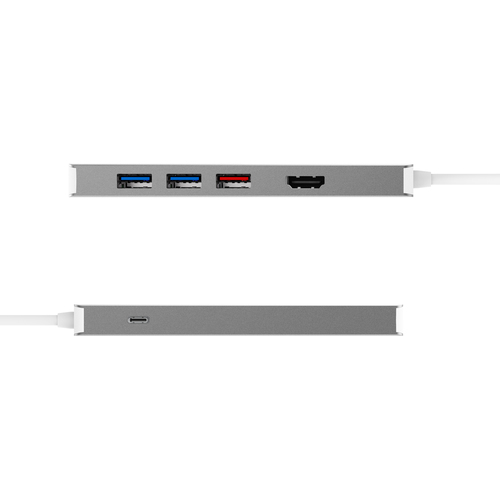

The JCD375 USB-C™ Modular Mini Dock 9-in-1 provides extra connectivity for your USB-C™ computer; featuring video, data storage and charging all in one. It includes 2 small detachable adapters (modular kits) to add extra ports and features to your laptop.
This pocket-sized multi-adapter allows you to add an additional USB™ 10G computer peripheral and HDMI™ monitor through your computer’s USB-C™ port. It also provides two modular kits that add a gigabit Ethernet port and/or an SD™ 4.0 card reader. Each kit can work separately as a complete mini adapter or be connected to the main body for use together.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JCD375-N |
| Our part no. | CE58437 |
| EAN | 4712795084924 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.1 kg |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Number of displays supported | 1 |
| Maximum refresh rate | 30 Hz |
| Product colour | Silver, White |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Plug and Play | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Country of origin | Taiwan |
| Power | |
| Power supply type | USB |
| Output voltage | 20 V |
| Output current | 0.5 A |
| Power consumption (typical) | 2.25 W |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 32.6 mm |
| Depth | 12.2 mm |
| Height | 126.5 mm |
| Weight | 92 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Package weight | 187 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging content | 1 x JCD375 Ultradrive Kit USB-C Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide |
| Technical details | |
| Box contents | 1 x JCD375 Ultradrive Kit USB-C™ Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide |
| Master (outer) case GTIN (EAN/UPC) | 24712795084928 |
| Warranty period | 2 year(s) |
| Logistics data | |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 4.54 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Shipping (inner) case width | 16.5 cm |
| Shipping (inner) case length | 21.2 cm |
| Shipping (inner) case height | 13.7 cm |
| Other features | |
| Cable length | 0.125 m |
| Compatible operating systems | Microsoft® Windows® 10 MacOS® 10.11 or later |
| Technical features | Modular Design, 5 Combinations with 2 Adapters, USB-C™ Power Delivery 100W Pass-through |
| Maximum operating temperature | 40 °C |
