Description

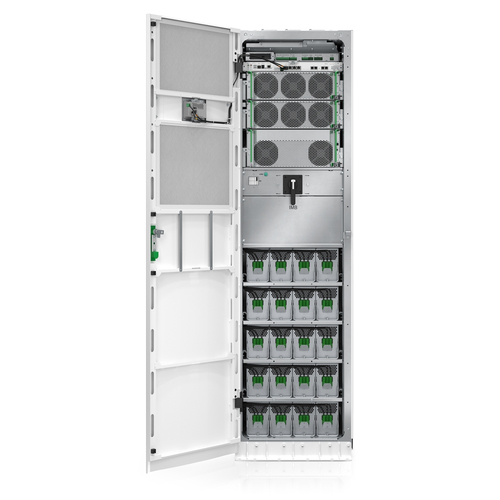

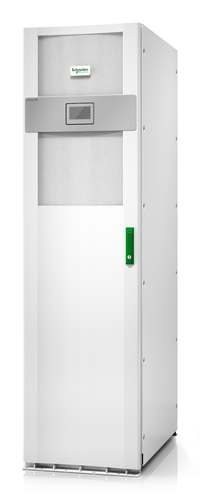

APC GALAXY VS, Double-conversion (Online), 80 kVA, 80000 W, Sine, 340 V, 460 V
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS80KB5HS |
| Our part no. | CE67119 |
| EAN | 0731304410027 |
| Category | Power & UPS › UPS Batteries |
| Weight | 270 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 480 V |
| Design | |
| Form factor | Tower |
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1005.84 m |
| Non-operating altitude | 0 - 3048 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Packaging content | |
| Management card included | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 680 kg |
| Battery width | 75.5 cm |
| Battery depth | 101 cm |
| Battery height | 2.08 m |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
