Description

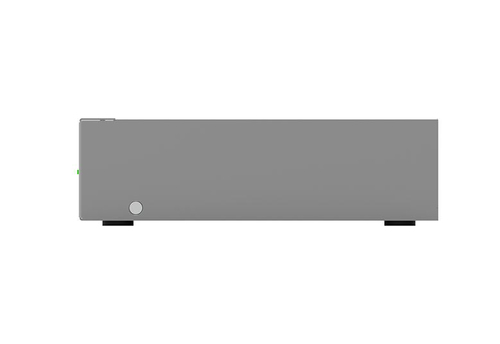

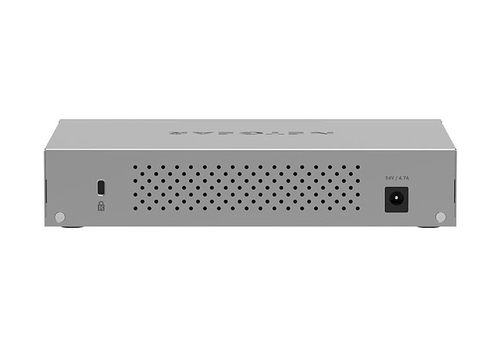

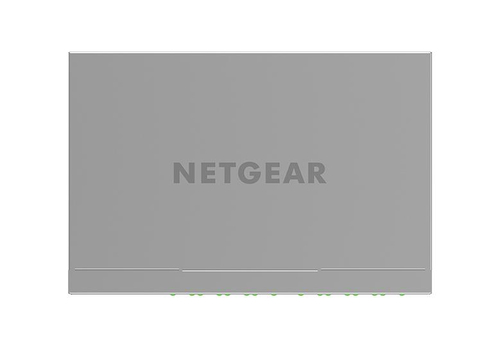

NETGEAR MS108UP, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Wall mountable
NETGEAR brings the first Unmanaged Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | MS108UP-100EUS |
| Our part no. | CE77844 |
| EAN | 0606449156874 |
| Category | Networking › Unmanaged Switches |
| Weight | 2.6 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 3.593 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1.5 MB |
| Design | |
| Rack mounting | No |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 373643.7 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 4.7 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 923.49 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
| Certificates | |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
