Description

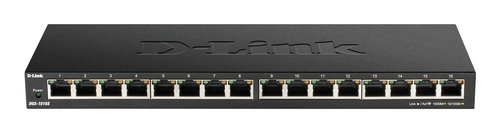

D-Link 16-Port Unmanaged Gigabit Ethernet Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Slim, Low-Profile Design Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation Fanless design means the switch is virtually silent when in use

Energy Efficient Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Specifications

BrandD-LINK
Manufacturer part no.DGS-1016S/B
Our part no.CE88762
EAN0790069464256
CategoryNetworking › Unmanaged Switches
Weight1 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable length detectionYes
Data transmission
Switching capacity32 Gbit/s
MAC address table8000 entries
Store-and-forwardYes
Number of queues8
Jumbo frames supportYes
Jumbo frames9216
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet buffer memory0.512 MB
Design
Product colourBlack
LED indicatorsActivity, Link, Power, Speed
SafetyLVD
Performance
Plug and PlayYes
FanlessYes
Mean time between failures (MTBF)564658 h
Power
DC input voltage12 V
Input current1 A
Power consumption (max)8.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation30.32 BTU/h
Weight & dimensions
Width280 mm
Depth110 mm
Height25 mm
Weight770 g
Certificates
CertificationCE, FCC, ICES 003, RCM
Logistics data
Harmonized System (HS) code85176990
