Description

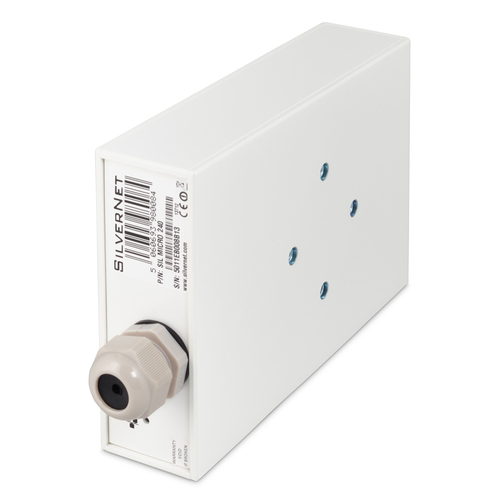

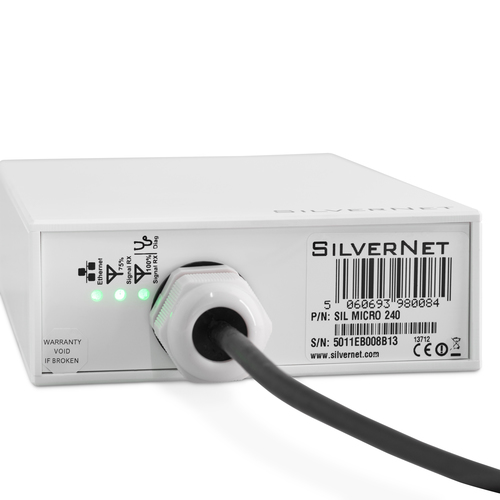

SilverNet SIL MICRO 500-PCP, Network bridge, 500 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, White
The SIL MICRO 500-PCP has an amazingly small form factor (17.9 x 12 x 4.5 cm), which is perfect for locations where the radio needs to be unobtrusive. As with the 100Mbps and 240Mbps versions, the SIL MICRO 500-PCP comes in Standard White, with other colours (including Carbon Black) available on special order.
The SIL MICRO 500-PCP is a 2km link that offers up to 500Mbps of actual throughput with a radio speed of 867Mbps. The SIL MICRO 500-PCP is great for those hungrier networks that require more throughput than the standard 100Mbps or upgraded 240Mbps versions.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Fully integrated into our Free NMS "SilverView".
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL MICRO 500-PCP |
| Our part no. | CE89280 |
| EAN | 5060693982798 |
| Category | Networking › Wireless Access Points |
| Weight | 2.9 kg |
| Data transmission | |
| Maximum data transfer rate | 500 Mbit/s |
| Maximum transfer distance | 2000 m |
| Supported data transfer rates | 500Mbps |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 14 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 14 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, [email protected] |
| Output power (dBm) | 26 |
| Indoor range | 2000m |
| Outdoor range | 2000m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES |
| Security features | 802.1x, 802.11i, 802.1Q |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |
| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Network Time Protocol (NTP) client | Yes |
| Mean time between failures (MTBF) | 60000 h |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 24 - 48 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Antenna diameter | 20.5 cm |
| Width | 179 mm |
| Depth | 120 mm |
| Height | 45 mm |
| Weight | 500 g |
| Packaging content | |

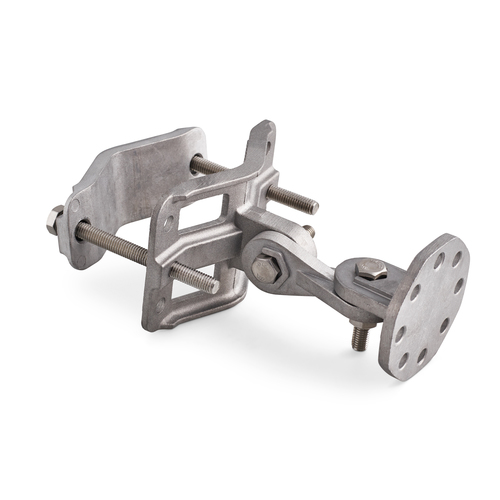

| Packaging content | Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 285 mm |
| Package depth | 320 mm |
| Package height | 115 mm |
| Package weight | 3.15 kg |
| Package type | Box |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
