Description

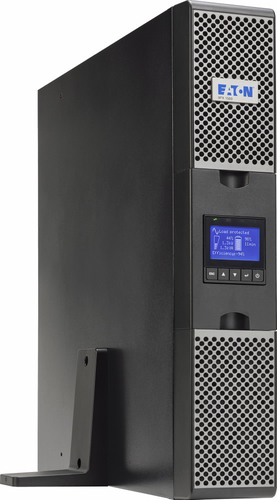

Eaton 9PX1500IRT2UBS, Double-conversion (Online), 1.5 kVA, 1500 W, Sine, 100 V, 276 V
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9PX1500IRT2UBS |
| Our part no. | CE92163 |
| EAN | 3553340620300 |
| Category | Power & UPS › UPS |
| Weight | 24.8 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1500 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 92.5% |
| Efficiency (ECO mode) | 97.5% |
| Power factor | 1 |
| Output power factor | 1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 35 dB |
| Power protection features | Overdischarge |

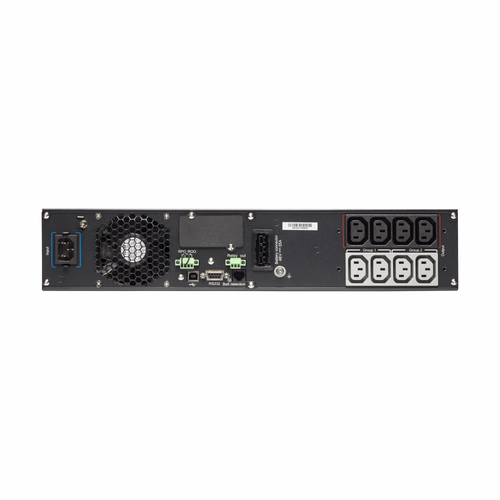

| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 4 |
| Typical backup time at full load | 5 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CE |
| Certification | CISPR22 B TUV cULus CSA 22.2 FCC 15 / B UL 1778 EAC IEC/EN 62040-1 IEC/EN 62040-2 |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 580 mm |
| Height | 240 mm |
| Weight | 17.8 kg |
