Description
Eaton 9SX1000IBS, Double-conversion (Online), 1 kVA, 900 W, Sine, 120 V, 276 V

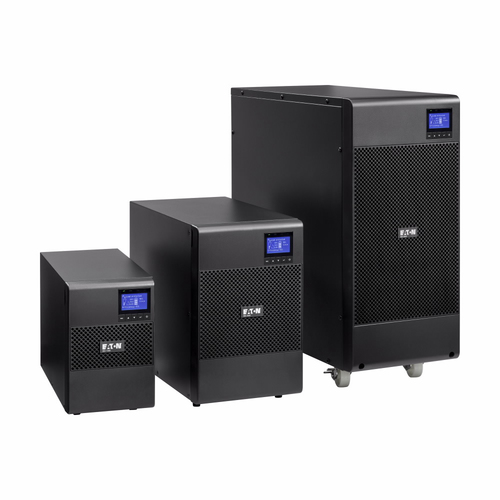

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9SX1000IBS |
| Our part no. | CE92168 |
| EAN | 3553340620416 |
| Category | Power & UPS › UPS |
| Weight | 16.8 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 89% |
| Efficiency (ECO mode) | 94% |
| Power factor | 0.9 |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 41 dB |
| Power protection features | Overdischarge |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 3 |
| Typical backup time at full load | 6 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CE |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 / B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 |
| Packaging content | |
| Rack mount kit | No |
| Cables included | Input power cable, Serial, USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 296 mm |
| Depth | 570 mm |
| Height | 377 mm |
| Weight | 15.2 kg |
