Description
Eaton 5SC1000IBS, Line-Interactive, 1 kVA, 700 W, Sine, 184 V, 276 V

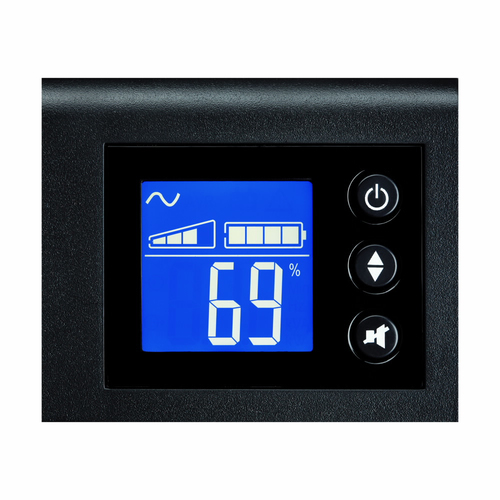

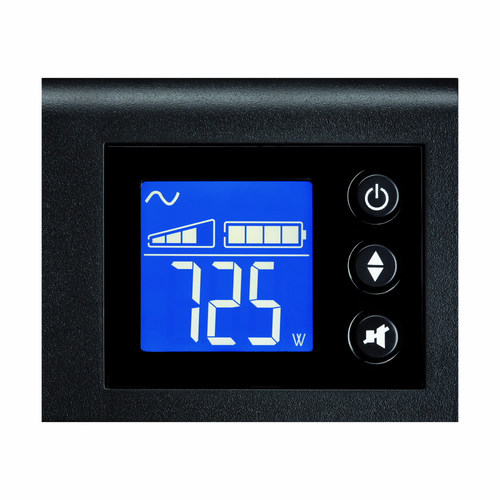

The Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5SC1000IBS |
| Our part no. | CE92181 |
| EAN | 3553340620379 |
| Category | Power & UPS › UPS |
| Weight | 12.6 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Waveform | Sine |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 96% |
| Power factor | 0.7 |
| Output power factor | 0.7 |
| Noise level | 40 dB |
| Power protection features | Overdischarge |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 5 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 2000 m |
| Certificates | |
| Compliance certificates | CE |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC cTUVus |
| Packaging content | |
| Rack mount kit | No |
| Cables included | Input power cable, Serial, USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 480 mm |
| Height | 300 mm |
| Weight | 12.3 kg |
