Description
Eaton 5S700IBS, Line-Interactive, 1.5 kVA, 900 W, 175 V, 275 V, 46/70 Hz

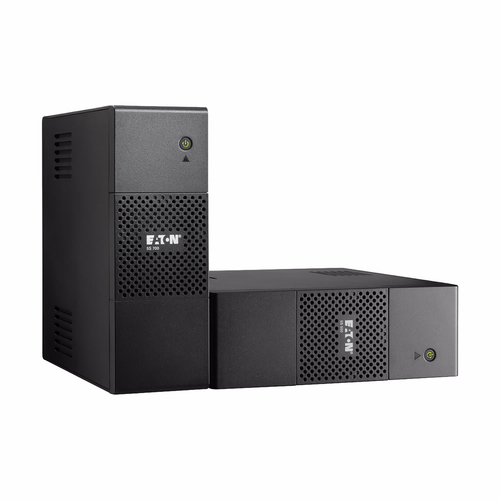

The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5S700IBS |
| Our part no. | CE92185 |
| EAN | 3553340620188 |
| Category | Power & UPS › UPS |
| Weight | 6.7 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 900 W |
| Input operation voltage (min) | 175 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 46/70 Hz |
| Output operation voltage (min) | 184 V |
| Output operation voltage (max) | 276 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 97% |
| Power factor | 0.6 |
| Output power factor | 0.6 |
| Noise level | 25 dB |
| Surge protection | Yes |
| Power protection features | Overdischarge |
| Ports & interfaces | |

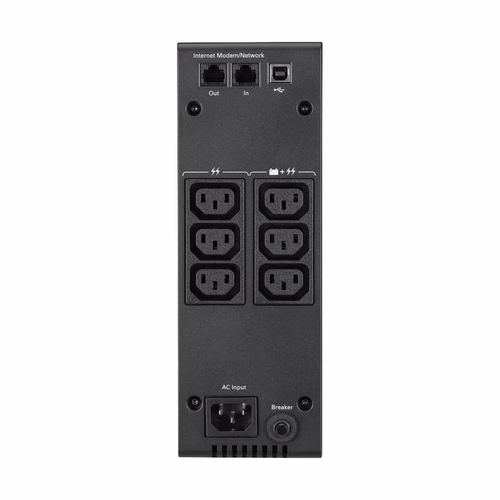

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Serial interface | No |
| Battery | |

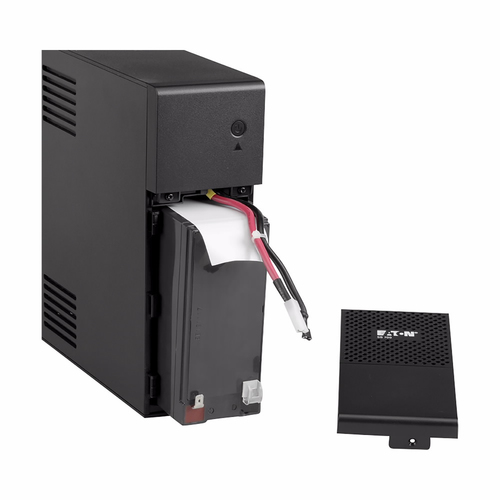

| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Typical backup time at full load | 2 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating altitude | 0 - 2000 m |
| Certificates | |
| Compliance certificates | CE |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 EAC |
| Packaging content | |
| Cables included | Input power cable, USB cable |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 87 mm |
| Height | 250 mm |
| Weight | 7.1 kg |
