Description

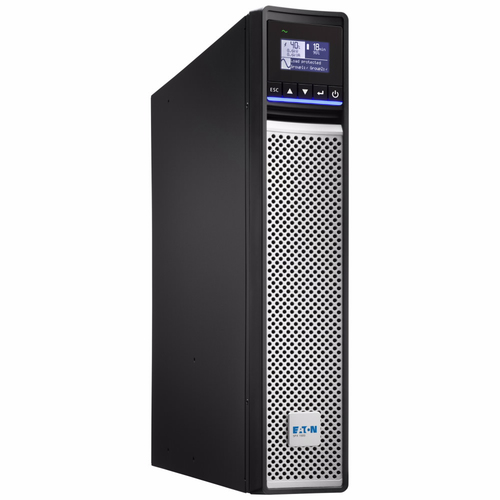

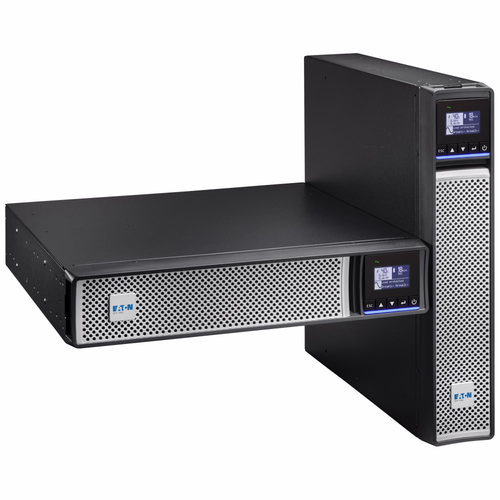

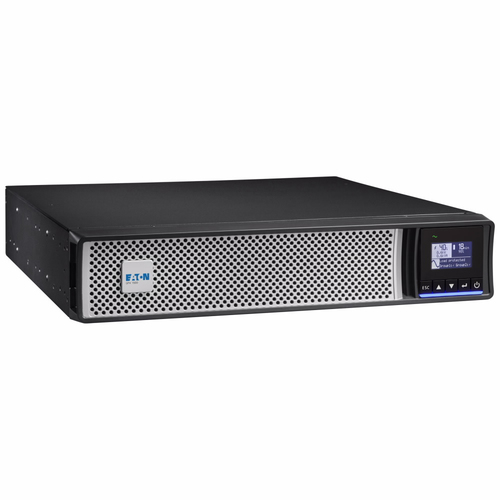

Eaton 5PX1500IRTNG2BS, Line-Interactive, 1.5 kVA, 1500 W, Sine, 150 V, 294 V
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5PX1500IRTNG2BS |
| Our part no. | CE92192 |
| EAN | 3553340620911 |
| Category | Power & UPS › UPS |
| Weight | 28.3 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 1500 W |
| Waveform | Sine |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 1 |
| Output power factor | 1 |
| Noise level | 40 dB |
| Power protection features | Overdischarge |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 4 |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 498 mm |
| Depth | 585 mm |
| Height | 240 mm |
| Weight | 22.6 kg |
