Description

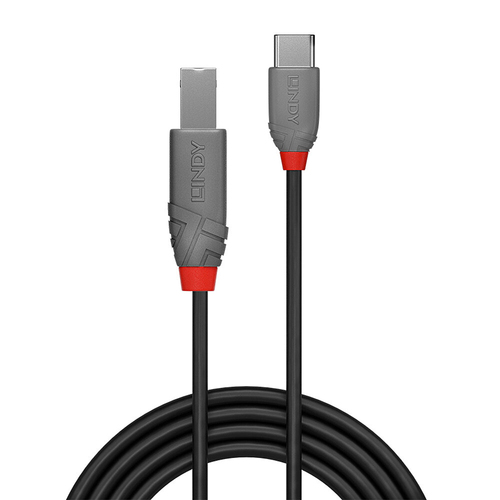

Lindy 3m USB 2.0 Type C to B Cable, Anthra Line, 3 m, USB C, USB B, USB 2.0, 0.48 Gbit/s, Black
The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

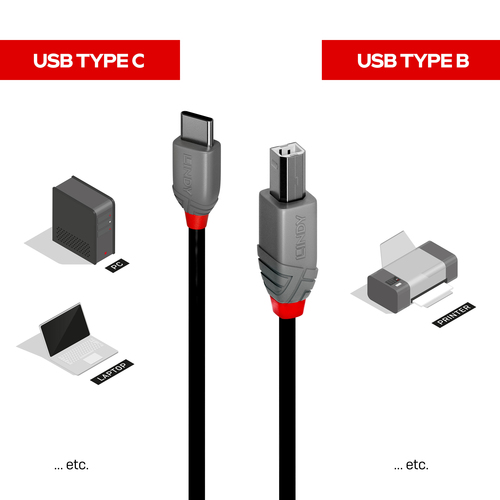

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36943 |
| Our part no. | CE95444 |
| EAN | 4002888369435 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0 kg |
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| Contact material | Brass |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Nominal attenuation | 1-400MHz < 5.8dB |
| Weight & dimensions | |
| Cable length | 3 m |
| Cable diameter | 4.4 mm |
| Bend radius (min) | 2.5 cm |
| Connector 1 dimensions (WxDxH) | 10.9 x 28.3 x 7.2 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 47 x 10.2 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
