Description

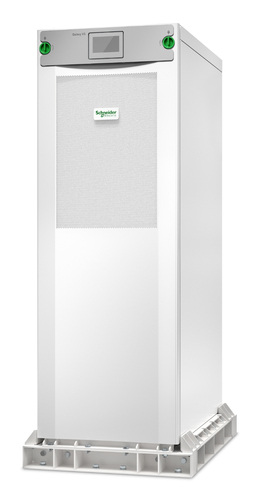

APC GVSUPS100KMHS, 100 kVA, 100000 W, Sine, 380 V, 415 V, 40 - 70 Hz
Highly efficient, easy-to-deploy 100kW, 400V 3-phase UPS." "Brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications." "Includes 5x8 start-up service and halogen-free cables. Marine certified.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS100KMHS |
| Our part no. | CF06871 |
| EAN | 0731304418399 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| Output power capacity | 100 kVA |
| Output power | 100000 W |
| Waveform | Sine |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 400 V |
| Output frequency | 50/60 Hz |
| Maximum current | 180 A |
| Heat dissipation | 11373 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.7 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 68 dB |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP21 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
| Technical details | |
| Minimum order quantity | 1 pc(s) |
| Battery included | No |
| Packaging content | |
| Manual | Yes |
| Power | |
| Input current (max) | 36 A |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 250 kg |
| Packaging data | |
| Package width | 990 mm |
| Package depth | 640 mm |
| Package height | 168 mm |
| Package weight | 290 kg |
| Logistics data | |
| Warranty period | 1 year(s) |
