Description

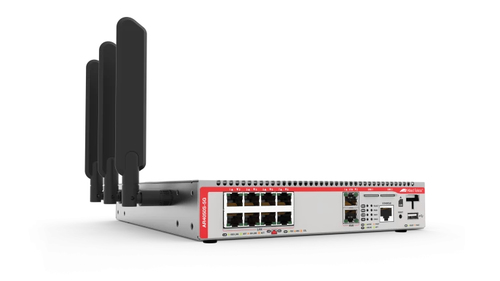

Allied Telesis R4050S-5G, 1.9 Gbit/s, 1 Gbit/s, 750 Mbit/s, 2048 MB, 1500 MHz, IEEE 802.1Q, IEEE 802.3ad
The AR4050S UTM Firewall consolidates threat protection, application and web control capabilities into a single device — ensuring the security of business communications. Together with advanced routing and switching, and a firewall certified secure by ICSA Labs, the high-performance AR4050S integrated security platform is the ideal choice for Enterprise gateway applications.
The quad-core processor delivers powerful performance, significantly increasing throughput and enabling simultaneous packet inspection. It is optimized for single-pass low-latency traffic inspection. Security engines and threat signature databases from the industry’s leading vendors, with regular updates, provide up-to-the-minute protection against malware, viruses and other cyber attacks.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-AR4050S-5G-50 |
| Our part no. | CF09444 |
| EAN | 0767035222288 |
| Category | Networking › Routers |
| Weight | 3 kg |
| Data transmission | |
| Firewall throughput | 1.9 Gbit/s |
| VPN throughput | 1 Gbit/s |
| IPS/IDS throughput | 750 Mbit/s |
| Maximum firewall connections per second | 1200 |
| Performance | |
| Built-in processor | Yes |
| Internal memory | 2048 MB |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| Multicast support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Port forwarding | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, WEP, WPA |
| VPN support | IPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN |
| Protocols | |
| Management protocols | IPv6, SNMPv6, Telnetv6, SSHv6 |
| Routing protocols | BGP4, OSPF, RIP-1, RIP-2 |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WAN connection | Ethernet (RJ-45) |
| Storage | |
| Storage media type | Flash |
| Flash memory | 4096 MB |
| Power | |
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 28 W |
| Certificates | |
| Certification | EN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 260 mm |
| Height | 42.5 mm |
| Weight | 2 kg |
| Other features | |
| Firewall throughput | 1900 Mbit/s |
| VPN throughput | 1000 Mbit/s |
