Description

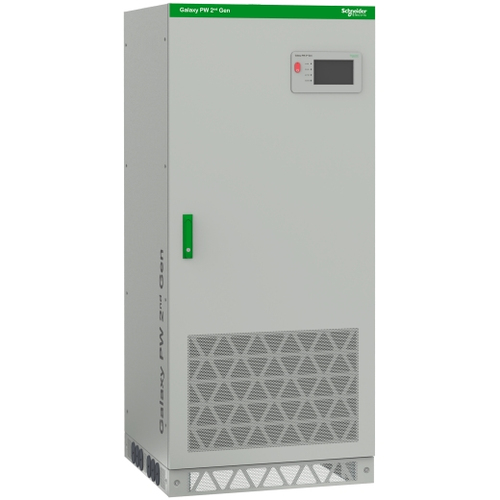

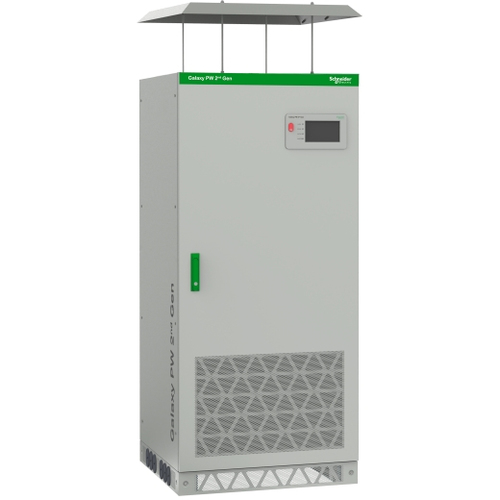

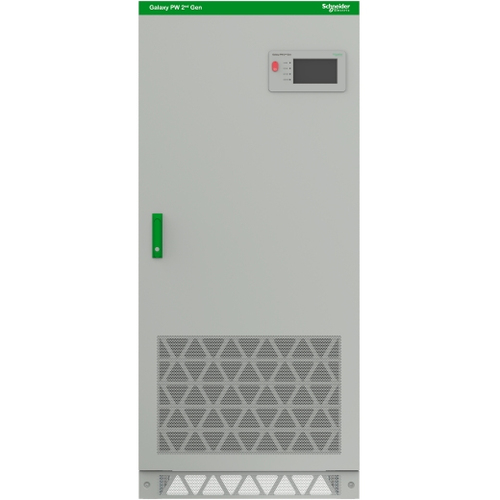

APC Galaxy PW, Double-conversion (Online), 20 kVA, 16000 W, Sine, 380 V, 415 V
Network management capability Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Parallel-capacity capability Increases total power capacity by using multiple uninterruptible power supplies simultaneously. Generator compatible Ensures clean, uninterrupted power to the loads in the event of an extended power outage Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | EPWUPS20KU6PTS |
| Our part no. | CF33246 |
| EAN | 0731304423980 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 16000 W |
| Waveform | Sine |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 45/55 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50 Hz |
| Output frequency regulation | 1 Hz |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 70 dB |
| Audible alarm(s) | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Grey |
| Display type | LCD |
| International Protection (IP) code | IP31 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 0 - 10000 m |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 800 mm |
| Depth | 800 mm |
| Height | 1800 mm |
| Weight | 491 kg |
