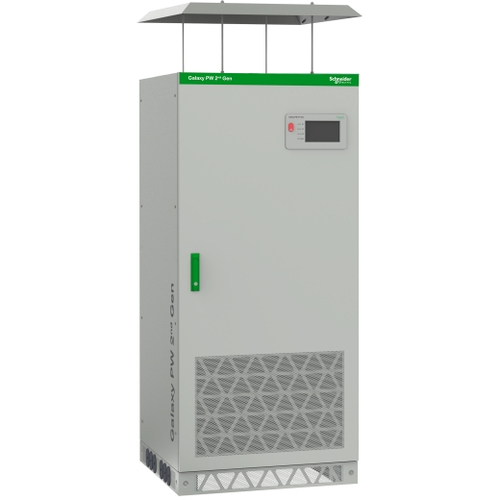

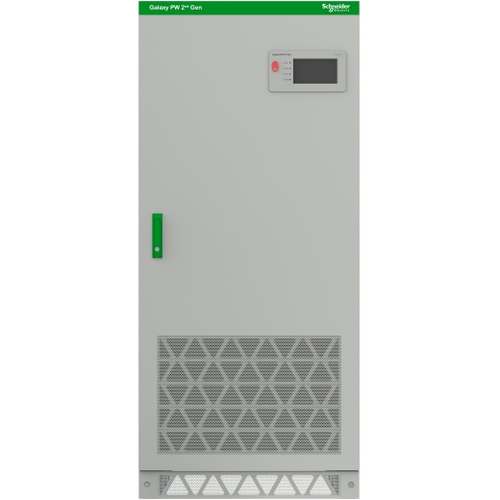

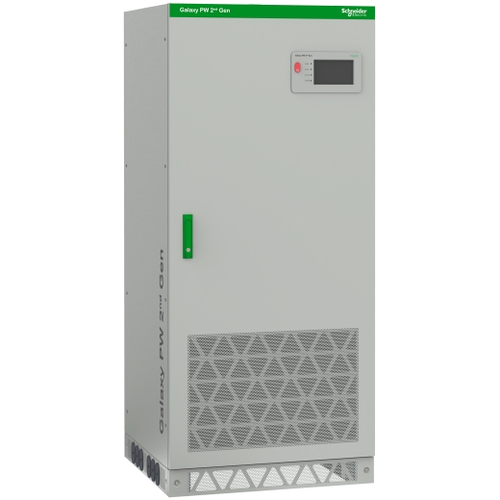

APC Galaxy PW uninterruptible power supply (UPS) 40 kVA 32000 W

Description

APC Galaxy PW, 40 kVA, 32000 W, Sine, 380 V, 415 V, 45/55 Hz

Transformer-based 40 kVA 3-phase input, single-phase output UPS with 12-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.

Network management capability Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Parallel-capacity capability Increases total power capacity by using multiple uninterruptible power supplies simultaneously. Generator compatible Ensures clean, uninterrupted power to the loads in the event of an extended power outage Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources.

Specifications

BrandAPC
Manufacturer part no.EPWUPS40KU12PTS
Our part no.CF33253
EAN0731304424031
CategoryPower & UPS › UPS
Weight0 kg
Features
Output power capacity40 kVA
Output power32000 W
WaveformSine
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/55 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50 Hz
Number of input phases3
Number of output phases3
Output voltage Total Harmonic Distortion (THD)2%
Noise level70 dB
Audible alarm(s)Yes
Design
Form factorTower
Product colourGrey
Display typeLCD
International Protection (IP) codeIP31
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000.05 m
Non-operating altitude0 - 9999.9 m
Certificates
Compliance certificatesCE, RoHS
Sustainability
Sustainability complianceYes
Weight & dimensions
Width800 mm
Depth800 mm
Height1800 mm
Weight581 kg
Packaging data
Package width928 mm
Package depth928 mm
Package height2085 mm
Package weight651 kg
