Description
APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit, Double-conversion (Online), 10 kVA, 10000 W, Sine, 100 V, 285 V

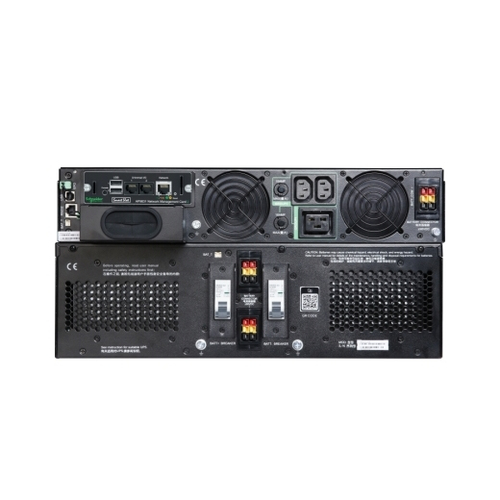

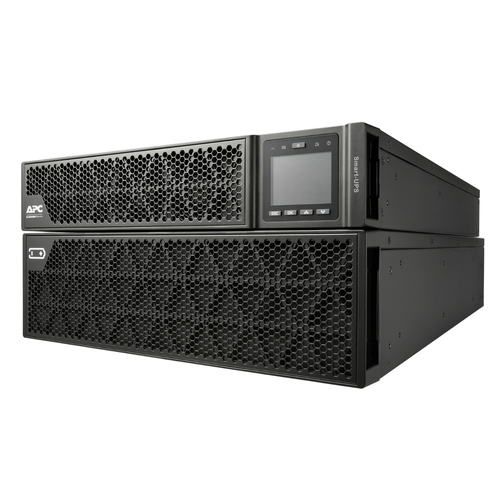

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13, 1x IEC 320 C19 and Hard wire 3-wire (H+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS is compatible with SRTGRK1 rail kit sold separately.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRTG10KXLI |
| Our part no. | CF33263 |
| EAN | 0731304411864 |
| Category | Power & UPS › UPS |
| Weight | 131.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 96 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2011.68 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
| Management card included | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 620 mm |
| Height | 217 mm |
| Weight | 81.1 kg |
| Packaging data | |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 414 mm |
| Package weight | 83.1 kg |
