Description

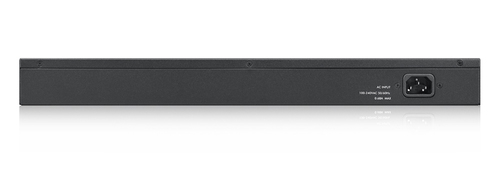

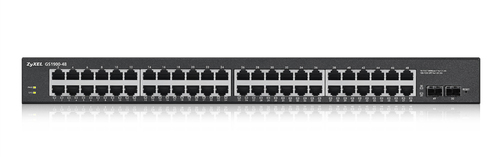

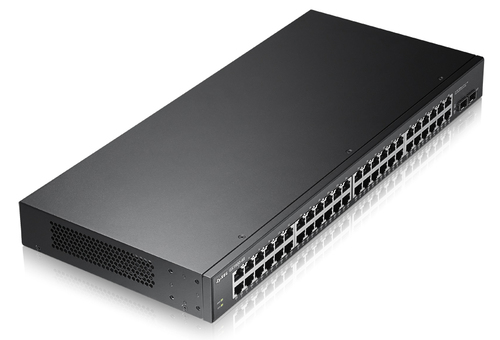

Zyxel GS1900-48-GB0102F, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
Simple, Fast and Smart Managed Switches for Small Business Connectivity The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. The 1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | GS1900-48-GB0102F |
| Our part no. | CF47120 |
| EAN | 4718937621262 |
| Category | Networking › Switches |
| Weight | 3.7 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Data transmission | |
| Switching capacity | 100 Gbit/s |
| Throughput | 74 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Performance | |
| Firmware upgradeable | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 126 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 29 kg |
| Packaging data | |
| Package width | 509 mm |
| Package depth | 292 mm |
| Package height | 93 mm |
| Package weight | 4.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
