Description

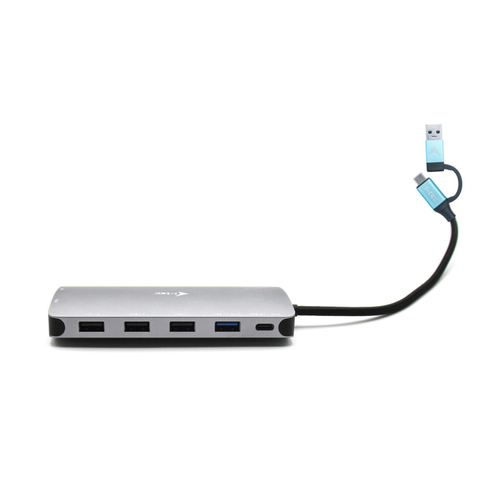

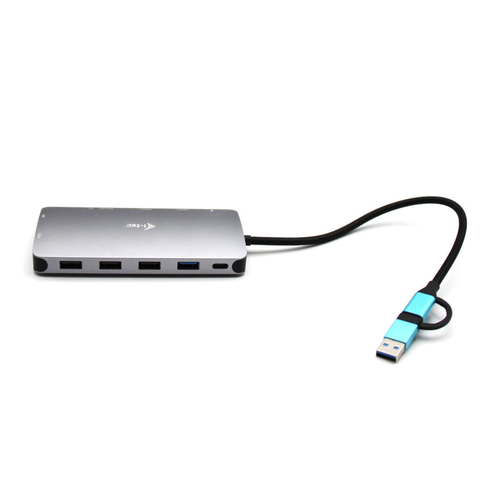

i-tec USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C, 100 W, 10,100,1000 Mbit/s, Silver, MicroSD (TransFlash), SD

A powerful yet small and portable docking station that supports up to three external monitors. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C, USB4 and Thunderbolt” 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible with a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).

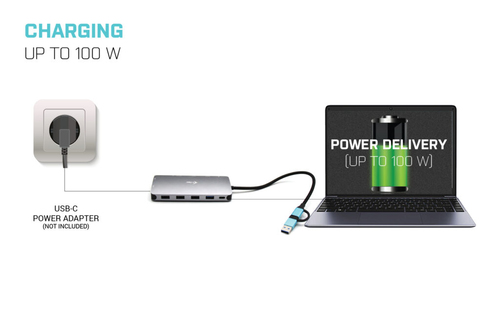

The 5 USB ports, reliable and fast connection to the corporate network thanks to the integrated LAN port and native VGA support all make this docking station the ideal companion for professionals who are often on the road and need to connect even to older monitors and projectors. Of course, it supports charging your laptop or tablet (up to 100W).

- Connect up to 3 external monitors* - Power delivery: up to 100 W - There are 2 HDMI* ports and one VGA port - 1x USB 3.2, 1x USB-C and 3x USB 2.0 allow you to easily connect your USB devices and - Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds - SD and microSD slots for easy data transfer from memory cards - Supports Windows 10/11, macOS, Android, Linux and ChromeOS *HDMI 1 port will only work when connected to a laptop with Thunderbolt 3/4, USB4, or USB-C port that supports video transfer (called USB-C DP Alt mode)

If the dock is connected via USB 3.0, charging of laptops and tablets is not supported

Specifications

BrandI-TEC
Manufacturer part no.CANANOTDOCKPD
Our part no.CF51451
EAN8595611705762
CategoryDocks, Bags & Racks › Docking Stations
Weight0.1 kg
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
HDMI ports quantity2
VGA (D-Sub) ports quantity1
Microphone inNo
USB Type-C DisplayPort Alternate ModeYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
Data transfer rate5 Gbit/s
Number of displays supported3
Maximum refresh rate60 Hz
Product colourSilver
LED indicatorsYes
Power
Power source typeUSB
Software
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid
Weight & dimensions
Width127 mm
Depth60 mm
Height18 mm
Weight122 g
Packaging data
Package width190 mm
Package depth98 mm
Package height23 mm
Package weight140 g
Packaging content
Quick start guideYes
