Description

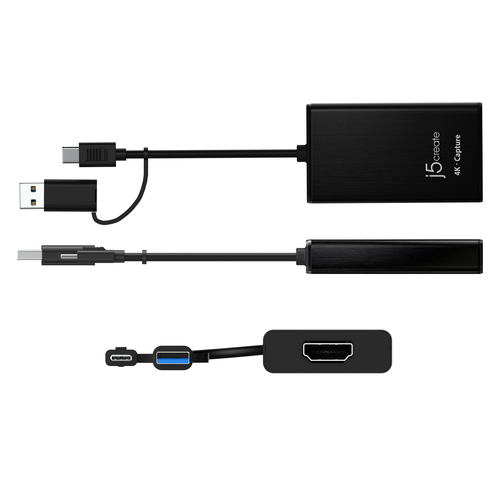

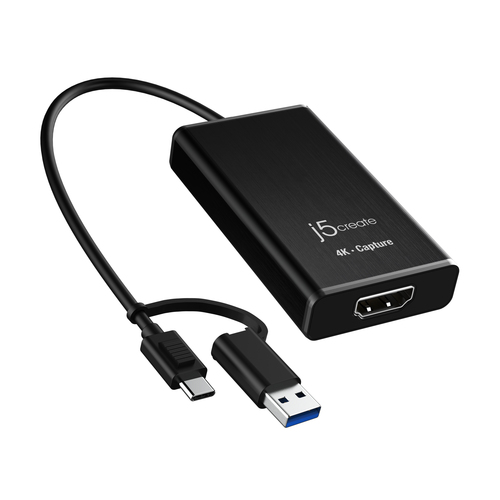

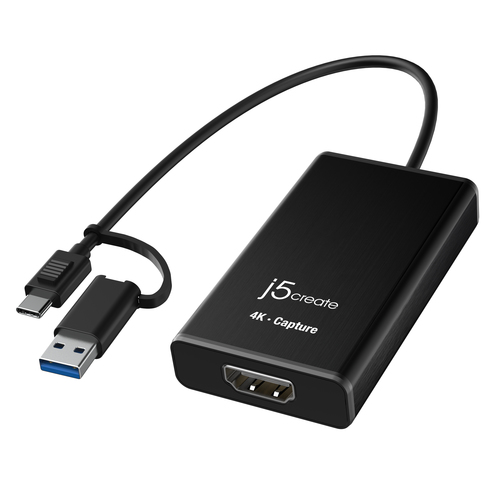

j5create JVA11-N 4K HDMI™ Capture Adapter, Black, USB 3.2 Gen 1 (3.1 Gen 1), 3840 x 2160 pixels, Aluminium, 0.19 m, Taiwan

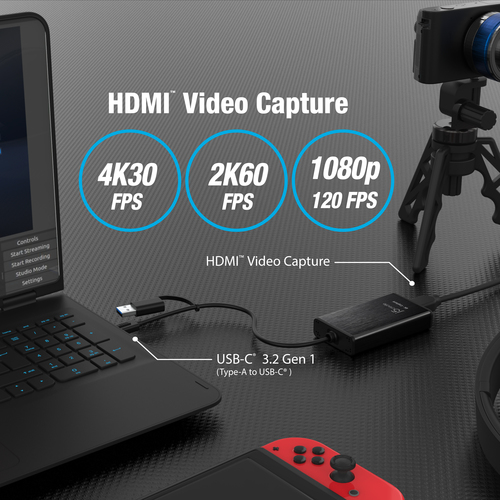

Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JVA11-N |
| Our part no. | CF54153 |
| Category | Headsets & Webcams › Other (0896) |
| Weight | 0.1 kg |
| Performance | |
| Product colour | Black |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Cable length | 0.19 m |
| Country of origin | Taiwan |
| Video | |
| Analog signal format system | Not supported |
| Supported resolutions | 4K30 fps, 2K60 fps, 1080p120 fps |
| Maximum frame rate | 120 fps |
| Ports & interfaces | |
| USB port | No |
| USB connector type | USB Type-A, USB Type-C |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| HDMI ports quantity | 1 |
| HDMI in | 1 |
| AV output | No |
| AV input | No |
| DC-in jack | No |
| Power | |
| Power supply type | USB |
| Software | |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android |
| System requirements | |
| Minimum processor | Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended) Windows® 7 or later macOS® 10.12 or later Android™ 8.1 or later Chrome OS™ with UVC support CPU: Intel® Core™ i7 6700HQ & above GPU: NVIDA® GTX 960M & above RAM: 8 GB or higher |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 85% |
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width | 41 mm |
| Depth | 14.1 mm |
| Height | 72 mm |
| Weight | 55 g |
| Packaging data | |
| Package weight | 96 g |
| Package height | 25 mm |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package type | Box |
| Packaging content | |
| Protective case | No |
| Remote control included | No |
| Batteries included | No |
| AC adapter included | No |
| Software included | No |
| Full-height bracket | No |
| Low-profile bracket | No |
| Screws included | No |
| Software CD | No |
| User guide | No |
| Quick installation guide | Yes |
| Manual | No |
| Quantity | 1 |
