Description
Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm, 200 x 100 mm, 600 x 400 mm, -2 - 12°, -45 - 45°, 6°, Black

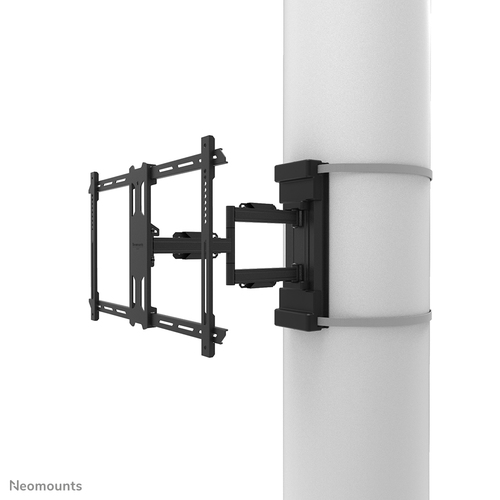

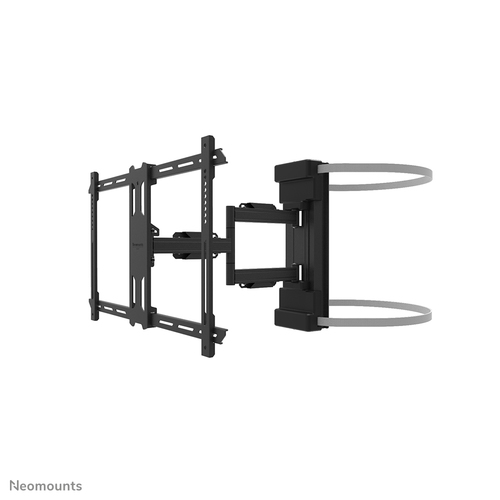

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.
The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

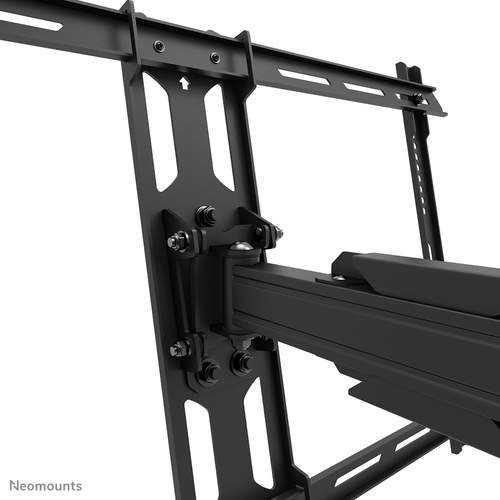

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL40S-910BL16 |
| Our part no. | CF55375 |
| EAN | 8717371449544 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 11.3 kg |
| Mounting | |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,300 x 400,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400 |
| Mounting type | Pole |
| Ergonomics | |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 59 cm |
| Distance to the wall (min) | 8.2 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 11.1 kg |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Warranty period | 5 year(s) |
| Lockable | Not lockable |
| Packaging content | |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 710 mm |
| Depth | 590 mm |
| Depth (min) | 8.2 cm |
| Depth (max) | 59 cm |
| Height | 520 mm |
| Weight | 9.5 kg |
| Packaging data | |
| Package width | 386 mm |
| Package depth | 95 mm |
| Package height | 744 mm |
| Package weight | 11.1 kg |
| Logistics data | |
| Master (outer) case width | 205 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case height | 764 mm |
| Master (outer) case gross weight | 22.8 kg |
| Master (outer) case net weight | 19 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 34 pc(s) |
| Other features | |
| Depth adjustment range | 82 - 590 mm |
