Description

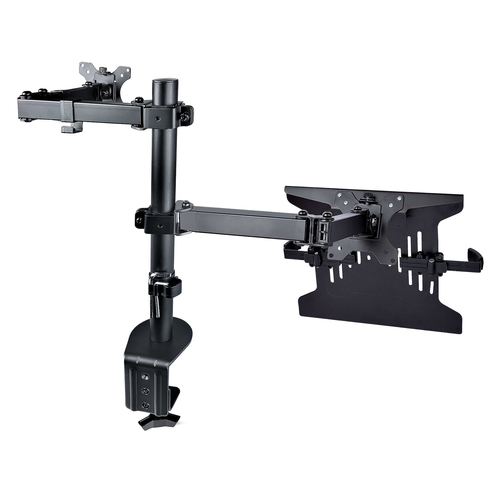

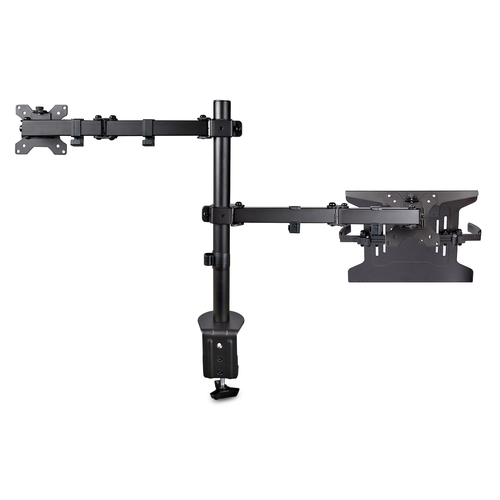

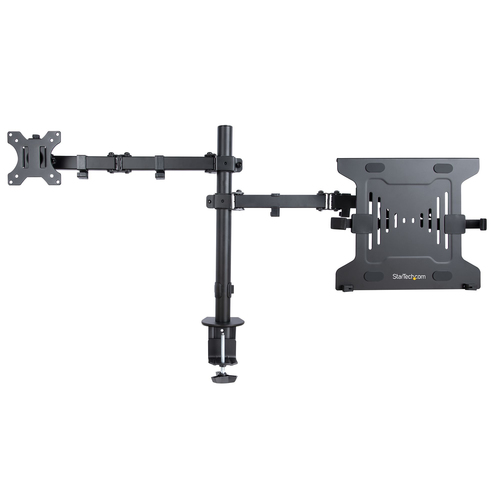

StarTech.com Monitor Arm with VESA Laptop Tray, For a Laptop (4.5kg/9.9lb) and a Single Display up to 32" (17.6lb/8kg), Black, Vented Tray, Adjustable Laptop Arm Mount, C-clamp/Grommet Mount, Clamp, 16 kg, 33 cm (13"), 86.4 cm (34"), 100 x 100 mm, Black
VESA Mount 75x75/100x100 | Laptop up to 9.4" to 16.5" Wide | Heigh Adjustment
Increase your desk space and add versatility and ergonomics to your work/home setup with this VESA-compatible laptop and monitor desk mount. The laptop tray (11.8x11in / 300x280mm) is large enough to hold a laptop between 9.4-16.5in (240-420mm) wide, 1in (25.4mm) thick, and up to 10lbs (4.5kg). The monitor arm allows you to mount a VESA compatible (75x75mm or 100x100mm) display up to 32in with a maximum weight of 17.6lbs (8kg).
Versatile compatibility and solid construction
This well-ventilated laptop tray includes rubber pads to prevent scuffs and scratches. In addition, the tray features two independent adjustable padded arms that serve as a cradle to secure the laptop and can be independently positioned and secured along the sides of the tray to prevent blocking any port configuration on a laptop. The tray and monitor mount are both solid steel.
Wide range of motion
The VESA mounts offer wide adjustability options such as tilt +/-45° swivel +/-90°; and rotation 360°. The height can be adjusted along the 17.4in / 443mm pole and the arms can also extend out a maximum of 15.7in / 399mm out. Two joints (at the pole and middle of the arms) allow them to swivel +/-180°.
Ergonomic design
The multiple adjustment options allow the laptop to be positioned at eye level improving your posture and comfort, and when positioning the monitor mount beside it, enhances your screen real estate and productivity.
Mounting options
Using the interchangeable desk clamp (C-clamp) you can easily attach and secure the mount to a desk or grommet hole by hand (grommet hole 0.39-2.36in / 10-60mm and desks 0.39-3.46in / 10-88mm thick). You can remove the laptop tray or monitor with no tools for hassle-free changes in your setup. To keep everything neatly arranged, cable management clips around the support arms keep the cables organized and out of the way.
A2-LAPTOP-DESK-MOUNT is backed for 5-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | A2-LAPTOP-DESK-MOUNT |
| Our part no. | CF58994 |
| EAN | 0065030895224 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 6.3 kg |
| Mounting | |
| Maximum weight capacity | 16 kg |
| Minimum screen size | 33 cm (13") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 86.4 cm (34") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Mounting hole range | 10 - 60 mm |
| Distance to the wall (max) | 39.9 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivel angle | 180° |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | -90 - 90° |
| Number of arms | 2 |
| Cable management | Yes |
| Design | |
| Housing material | Plastic, Steel |
| Product colour | Black |
| Weight & dimensions | |
| Weight | 6.1 kg |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 327 mm |
| Package height | 130 mm |
| Package weight | 6.3 kg |
| Packaging content | |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Number of rubber pads included | 5 pc(s) |
| Screws included | Yes |
| Number of screws | 39 |
| Number of washers included | 8 |
| Number of spacers included | 8 |
| Grommet base plate included | Yes |
| Grommet plate included | Yes |
| Logistics data | |
| Master (outer) case width | 455 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 130 mm |
| Products per master (outer) case | 1 pc(s) |
