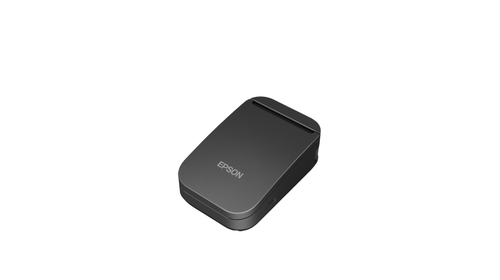

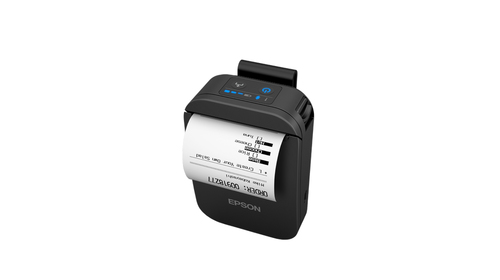

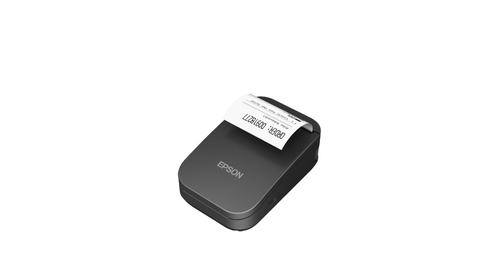

Epson TM-P20II (111): Mobile Receipt, Wi-Fi, USB-C, Black, WE/CEE, Thermal, Mobile printer, 203 x 203 DPI, 100 mm/sec, 100 mm/sec, Graphic, Barcode, 2D barcode, Text

2-inch portable receipt printer Sporting an all-new, ultra-light and stylish design, this popular receipt printer offers a range of new and advanced features, as well as enhanced durability. Providing outstanding flexibility, reliability, connectivity and ease-of-use, it's perfect for busy, on-the-go environments such as retail, hospitality and in-vehicle applications.

Compact, stylish and ultra-light Whatever your application, from retail to hospitality, this receipt printer is designed to make life easy. Wi-Fi model weighing only 223g (approx.) and Bluetooth model 216g (approx.), its ultra-light form factor makes it the ideal solution for any on-the-go environment.

Robust and reliable When you’re out and about, your devices are exposed to many hazards of everyday life. But with its increased impact resistance and protection to IP54 standards, the TM-P20II is designed to withstand most ordinary knocks, as well as exposure to dust and water.

Outstanding connectivity, range and battery life With USB-C connectivity, plus support for Bluetooth 5.0 “classic” and low-energy modes, it provides excellent range, seamless pairing and reliable all-day battery life, while its Wi-Fi 5 capability means that it offers excellent wireless performance, including a Wi-Fi “Direct” mode enabling direct connection of up to 8 devices without the need to connect to a network or hotspot.

Great for in-vehicle applications Fully approved for use in vehicles, the highly compact and fully self-contained TM-P20II is easily integrated into your workflow, helping you to become more efficient and productive.

Easy and comfortable to carry Super-light and ergonomically designed, the TM-P20II can be easily mounted onto a belt, or shoulder carried using an (optional) strap.

Fast, easy set-up Because the TM-P20II comes with a comprehensive “quick start” sheet, which includes QR-codes that link to video guides, set-up and configuration is simple and hassle-free - so you can be up and running almost instantly.

Specifications

BrandEPSON
Manufacturer part no.C31CJ99111
Our part no.CF62597
CategoryLabel & Receipt Printers › Other (5805)
Weight0.6 kg
Printing
ColourNo
Maximum resolution203 x 203 DPI
Print speed100 mm/sec
Print speed (receipt)100 mm/sec
Printing charactersGraphic, Barcode, 2D barcode, Text
Print technologyThermal
TypeMobile printer
Paper handling
Paper loading typeTop & front
Printing media thickness75 µm
Supported paper width58 mm
Maximum printing width5.8 cm
Ports & interfaces
USB portYes
USB connectorUSB Type-C
Connectivity technologyWired & Wireless
Near Field Communication (NFC)Yes
InterfaceUSB Type-C, Wireless LAN IEEE 802.11a/b/g/n/ac
Network
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Built-in barcodesCode 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417
Sound pressure level (printing)53 dB
Mean time between failures (MTBF)120000 h
CutterYes
Paper save functionYes
Print head life50 km
Country of originPhilippines
Design
Product colourBlack
Power
Power source typeDC
AC input voltage7.2 V
Battery life (max)15 h
Operational conditions
Operating temperature (T-T)-15 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 90%
Weight & dimensions
Width79 mm
Depth120 mm
Height46 mm
Weight220 g
Packaging data
Cables includedUSB
Quantity per pack1 pc(s)
Package width165 mm
Package depth220 mm
Package height95 mm
Package weight613 g
Battery
Battery capacity1240 mAh
Logistics data
Products per pallet288 pc(s)
Products per pallet layer32 pc(s)
Products per pallet (UK)432 pc(s)
Products per pallet layer (UK)48 pc(s)
Technical details
Font stylesANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese
Box contentsBattery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document
Paper size roll paper57.50 ± 0.50 (W) mm x dia 40.00 mm
Print speedMax. 100 mm/sec at 203 x 203 DPI ( printing width58 mm)
TechnologyThermal Line
Other features
Buffer size64 KB
