Description

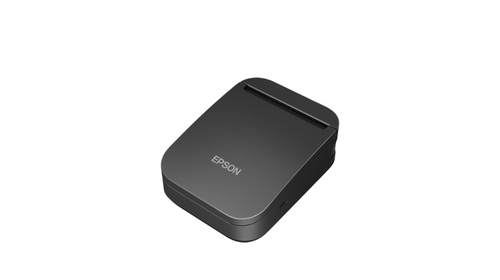

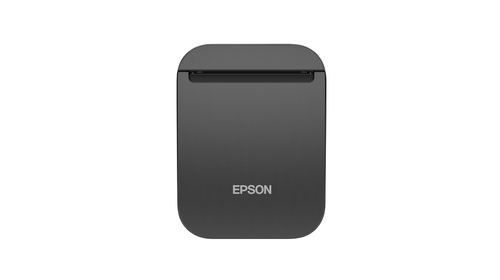

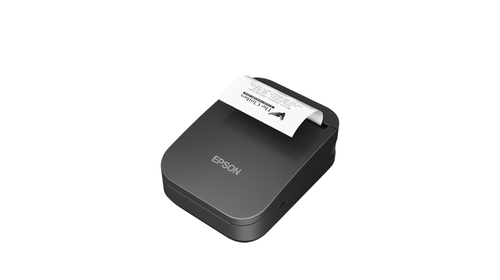

Epson TM-P80II (111): Mobile Receipt, Wi-Fi, USB-C, Black, WE/CEE, Thermal, Mobile printer, 203 x 203 DPI, 100 mm/sec, 100 mm/sec, Graphic, Barcode, 2D barcode, Text
3-inch portable receipt printer Providing outstanding flexibility, reliability, connectivity and ease-of-use, this stylish and compact receipt printer is even lighter than its predecessor, and is perfect for busy, fast-moving environments.
Perfect for a wide range of applications Whatever your application, from retail to hospitality, the TM-P80II is designed to make life easy. Measuring only 138 x 105 x 68 mm, its ultra-light and ergonomic form factor makes it the ideal solution for any on-the-go environment.
Ideal for in-vehicle use Fully approved for in-vehicle use, this highly versatile receipt printer is also ideal for transportation applications, such as a taxis or on-board ticketing, and logistics applications such as payment on-delivery or invoicing.
Excellent connectivity with USB, Bluetooth and WiFi 5 With USB-C connectivity, plus support for Bluetooth 5.0 “classic” and low-energy modes, the TM-P80II provides excellent range, seamless pairing and reliable all-day battery life, while its Wi-Fi 5 capability means that it offers excellent wireless performance, including a Wi-Fi “Direct” mode enabling direct connection of up to 8 devices without the need to connect to a network or hotspot.
Robust and reliable With increased impact resistance and protection to IP54 standards, the TM-P80II is designed to withstand most ordinary knocks, as well as exposure to dust and water.
Fast, easy set-up Because the TM-P80II comes with a comprehensive “quick start” sheet, which includes QR-codes that link to video guides, set-up and configuration is simple and hassle-free - so you can be up and running almost instantly.
Major benefits for developers Full support is provided for both ESC/POS and standard Epson Drivers, while Epson’s proven software solutions ensure that the migration of existing POS systems is near-seamless, and new development is fast and problem-free.
Specifications
| Brand | EPSON |
|---|---|
| Manufacturer part no. | C31CK00111 |
| Our part no. | CF62599 |
| Category | Label & Receipt Printers › Other (5805) |
| Weight | 0.8 kg |
| Printing | |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 100 mm/sec |
| Print speed (receipt) | 100 mm/sec |
| Printing characters | Graphic, Barcode, 2D barcode, Text |
| Print technology | Thermal |
| Type | Mobile printer |
| Paper handling | |
| Paper loading type | Top & front |
| Printing media thickness | 75 µm |
| Supported paper width | 80 mm |
| Maximum printing width | 8 cm |
| Ports & interfaces | |
| USB port | Yes |
| USB connector | USB Type-C |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Connectivity technology | Wired & Wireless |
| Near Field Communication (NFC) | Yes |
| Interface | USB Type-C, Wireless LAN IEEE 802.11a/b/g/n/ac |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Features | |
| Built-in barcodes | Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417 |
| Sound pressure level (printing) | 53 dB |
| Mean time between failures (MTBF) | 120000 h |
| Cutter | Yes |
| Paper save function | Yes |
| Print head life | 50 km |
| Country of origin | Philippines |
| Design | |
| Product colour | Black |
| Power | |
| Power source type | DC |
| AC input voltage | 7.2 V |
| Battery life (max) | 25 h |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 138 mm |
| Height | 58 mm |
| Weight | 386 kg |
| Packaging data | |
| Cables included | USB |
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 165 mm |
| Package height | 110 mm |
| Package weight | 795 g |
| Battery | |
| Battery capacity | 1950 mAh |
| Logistics data | |
| Products per pallet | 320 pc(s) |
| Products per pallet layer | 40 pc(s) |
| Products per pallet (UK) | 416 pc(s) |
| Products per pallet layer (UK) | 52 pc(s) |
| Technical details | |
| Font styles | ANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese |
| Box contents | Battery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document |
| Paper size roll paper | 79.50 ± 0.50 (W) mm x dia 51.00 mm |
| Print speed | Max. 100 mm/sec at 203 x 203 DPI ( printing width80 mm) |
| Technology | Thermal Line |
| Other features | |
| Buffer size | 64 KB |
