Description

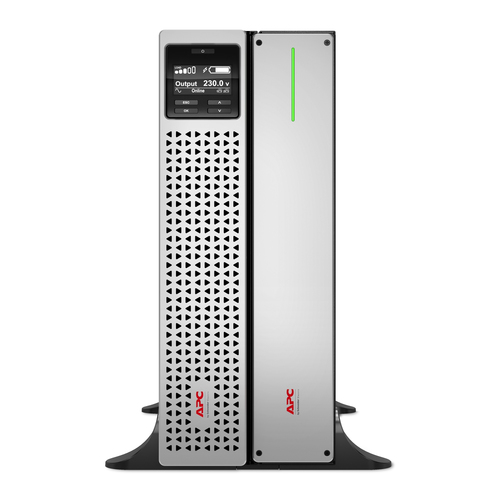

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included, Double-conversion (Online), 1 kVA, 900 W, Sine, 160 V, 275 V
At 900W/1000VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRTL1000RM4UXLI |
| Our part no. | CF66937 |
| EAN | 0731304508946 |
| Category | Power & UPS › UPS |
| Weight | 61 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 50 dB |
| Power source type | AC |
| Detachable power cord | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 Ah |
| Battery voltage | 48 V |
| Typical backup time at full load | 136 min |
| Typical backup time at half load | 252 min |
| Battery life (max) | 10 year(s) |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 4U |
| Cable length | 1.83 m |
| Modular | Yes |
| Product colour | Black, Silver |
| Control type | Buttons |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | RoHS, CE |
| Packaging content | |
| Rack mount kit | Yes |
| Management card included | No |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 59 mm |
| Height | 171 mm |
| Weight | 40.7 kg |
