Description

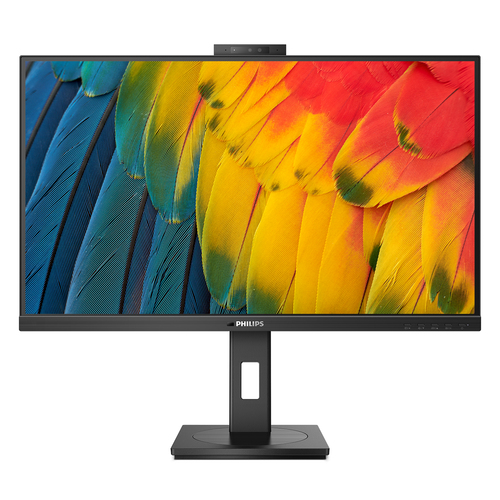

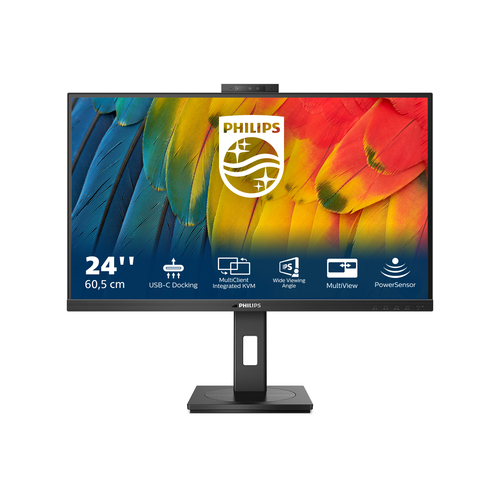

Philips 5000 series 24B1U5301H/00, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, 4 ms, Black
This USB-C monitor is for video watching, data transfer and power delivery. The integrated 5MP webcam delivers sharp images, and noise cancelling mic let people hear you fine. Pop-up webcam for quick access and strong security.
Specifications
| Brand | MMD - PHILIPS |
|---|---|
| Manufacturer part no. | 24B1U5301H/00 |
| Our part no. | CF70255 |
| EAN | 8712581796488 |
| Category | Monitors & Displays › Monitors |
| Weight | 8.3 kg |
| Display | |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 4 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| DDC/CI | Yes |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB, NTSC |
| Colour gamut | 88% |
| sRGB coverage (typical) | 105% |
| NTSC coverage (typical) | 88% |
| Display sRGB | Yes |
| Display panel size | 23.8 inch / 60.5 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Fast charging | Yes |
| Fast charging technology | Power Delivery |
| Component video sync | Separate Sync |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 90 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort out quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| DisplayPort output | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 15.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Weight & dimensions | |
| Width (with stand) | 540 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 500 mm |
| Weight (with stand) | 5.5 kg |
| Width (without stand) | 540 mm |
| Depth (without stand) | 51 mm |
| Height (without stand) | 323 mm |
| Weight (without stand) | 3.9 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 198 mm |
| Package height | 406 mm |
| Package weight | 8.32 kg |
| Packaging content | |
| Stand included | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Manual | Yes |
| Bundled software | SmartControl |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| HBR3 support | Yes |
| Compatible operating systems | DDC/CI, Mac OS X, sRGB, Windows 11 / 10 / 8.1 / 8 / 7 |
| Picture-by-Picture (PbP) | Yes |
| Exterior finish type | Textured |
| Monitor sync input signal | Separate Sync |
| User controls | SmartImage, Input, User, Menu, Power On/Off |
| Picture enhancement | SmartImage |
| MultiView | PIP/PBP mode, 2x devices |
| Regulatory Approvals | CB, CE Mark, FCC Class B, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified, cETLus |
| Light sensor | Yes |
| EasyRead mode | Yes |
| LowBlue mode | Yes |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 70000 h |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN | Yes |
| Recycling data | |
| Packaging recyclability rate | 100% |
| Product post-consumer recycled plastic | 85% |
