Description

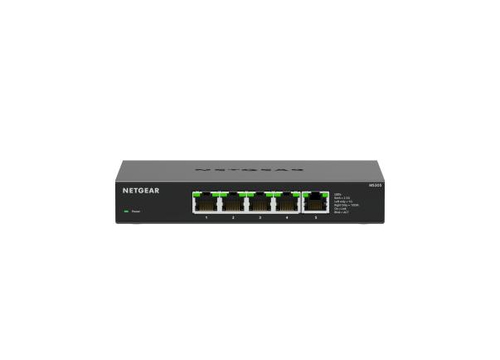

NETGEAR MS305, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

RELIABLE PERFORMANCE Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

Specifications

BrandNETGEAR
Manufacturer part no.MS305-100EUS
Our part no.CF71141
EAN0606449160123
CategoryNetworking › Unmanaged Switches
Weight0 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates100,1000,2500 Mbit/s
Cable length detectionYes
Data transmission
Forwarding rate3.72 Mpps
Latency (1 Gbps)2458 µs
Jumbo frames supportYes
Jumbo frames9720
Packet buffer memory1 MB
Design
Rack mountingNo
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsYes
Wall mountableYes
Number of fans0 fan(s)
Performance
Noise level0 dB
FanlessYes
Mean time between failures (MTBF)1401743 h
Power
Power sourceDC
Power supply includedYes
DC input voltage12 V
Input current1 A
Input voltage12 V
Power consumption (typical)4.6 W
Power consumption (max)9.24 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Weight & dimensions
Width158 mm
Depth101 mm
Height29 mm
Weight480 g
Certificates
Compliance certificatesCCC, Low Voltage Directive (LVD)
