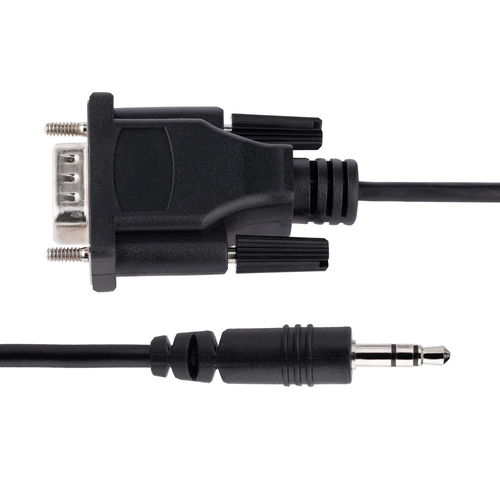

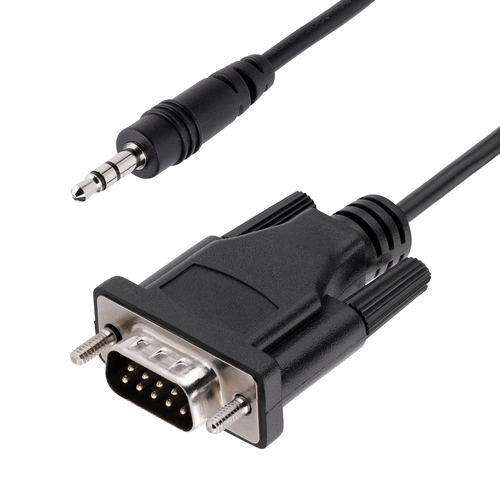

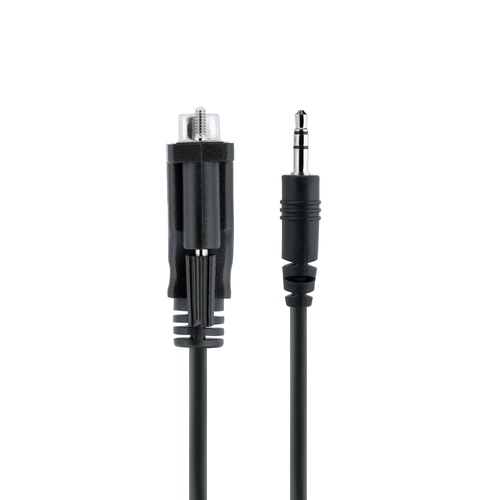

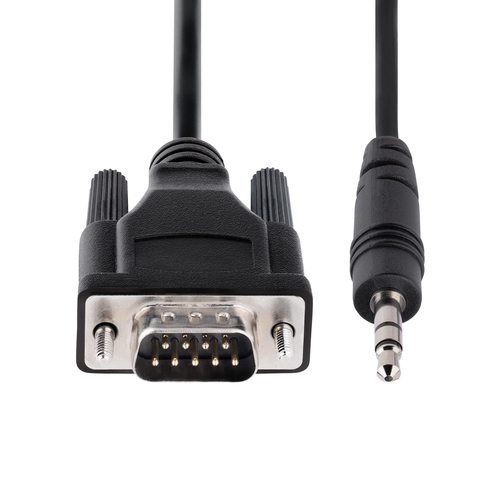

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack, DB-9, 3.5mm, 1 m, Black
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 9M351M-RS232-CABLE |
| Our part no. | CF96696 |
| EAN | 0065030893565 |
| Category | Cables & Adapters › Other (1204) |
| Weight | 0 kg |
| Ports & interfaces | |
| Connector 1 | DB-9 |
| Connector 2 | 3.5mm |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1 m |
| Performance | |
| Product colour | Black |
| Cable jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 30 - 75% |
| Certificates | |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 23 g |
| Technical details | |
| Cable diameter | 3.5 mm |
| Logistics data | |
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case width | 388 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 310 mm |
