Description

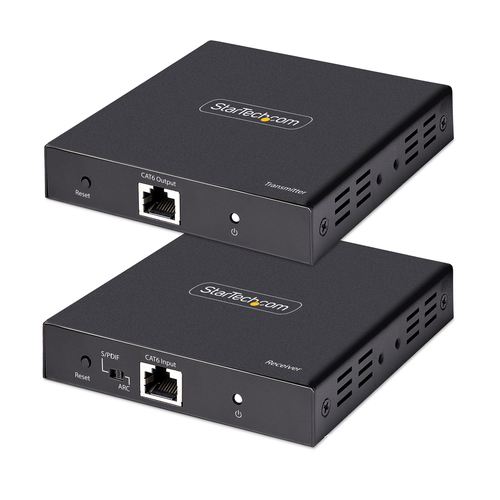

StarTech.com 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz

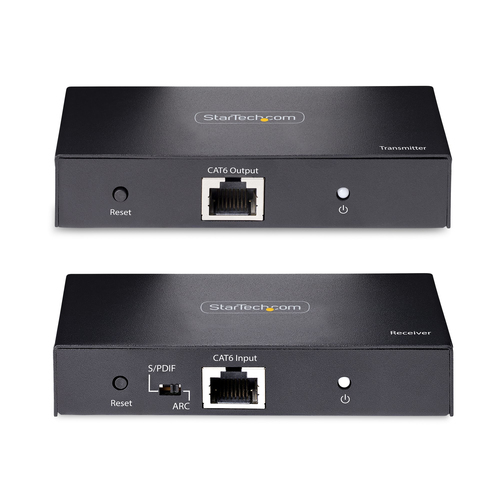

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options

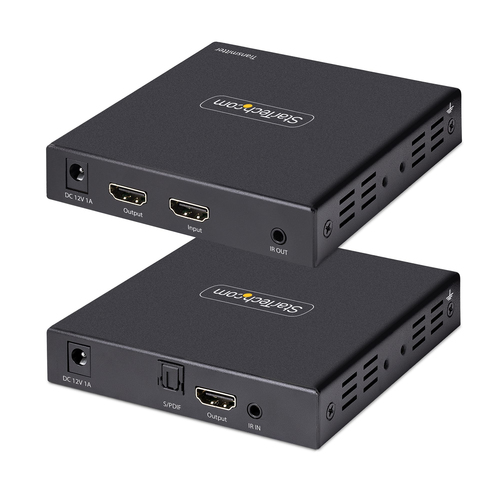

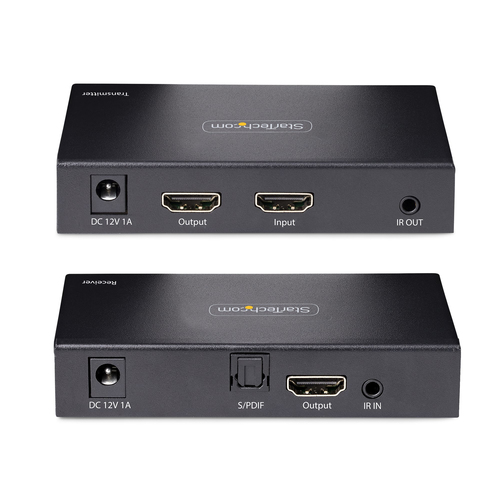

The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 4K70IC-EXTEND-HDMI |
| Our part no. | CF96699 |
| EAN | 0065030899208 |
| Category | Cables & Adapters › Other (1250) |
| Weight | 0.9 kg |
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Rubber feet | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Digital audio optical out | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Operating voltage (transmitter) | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 0.1 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 106 mm |
| Height | 26 mm |
| Weight | 210 g |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 182 mm |
| Package height | 83 mm |
| Package weight | 900 g |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 391 mm |
| Master (outer) case length | 281 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 10 pc(s) |
