Description

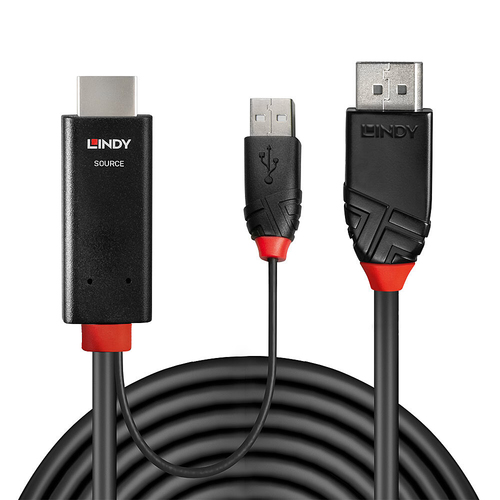

Lindy 3m HDMI to DisplayPort Cable, 3 m, HDMI + USB Type-A, DisplayPort, Male, Male, Straight
Lindy's HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors. With support for resolutions up to 4096x2160@60Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 41500 |
| Our part no. | CG19960 |
| EAN | 4002888415002 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0.2 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Cable length | 3 m |
| Connector 1 | HDMI + USB Type-A |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Data transfer rate | 21.6 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Bend radius (min) | 3.6 cm |
| Product colour | Black |
| Conductor material | Tinned copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 30 |
| Colour sampling | 4:2:2, 4:4:4 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 50 x 20.9 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 35 x 15.5 x 7.8 mm |
| Connector 3 dimensions (WxDxH) | 38.9 x 19.7 x 12 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
