Description

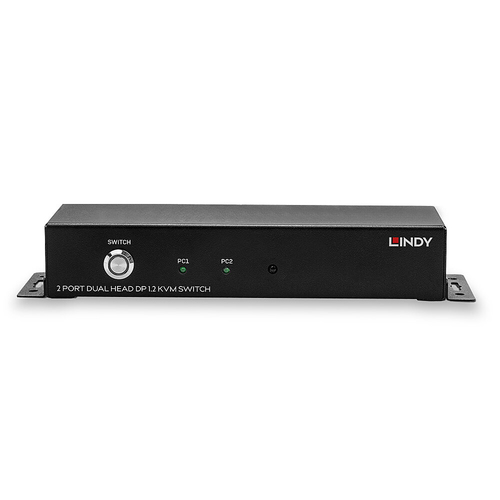

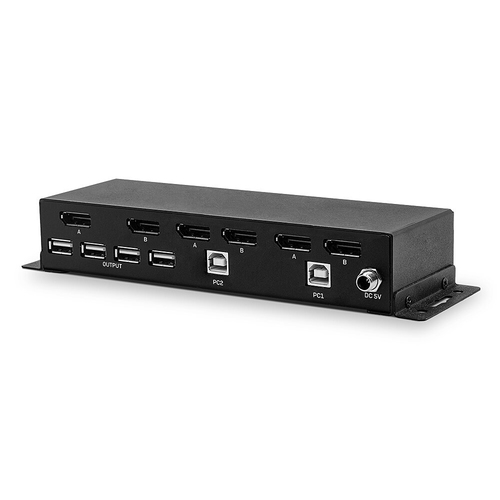

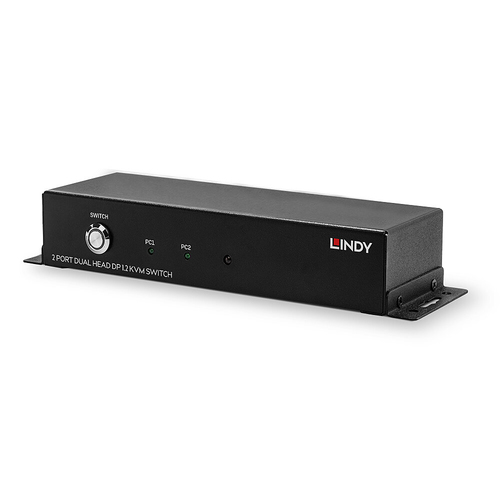

Lindy 2 Port Dual Head DisplayPort 1.2 KVM Switch, 3840 x 2160 pixels, 4K Ultra HD, Black

The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals and storage devices between host PC's seamlessly.

Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.

Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.

Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.

Please Note: connection cables are not included

Specifications

BrandLINDY
Manufacturer part no.39306
Our part no.CG19983
EAN4002888393065
CategoryNetworking › Other (0406)
Weight0.8 kg
Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity4
DisplayPort version1.2
USB 2.0 Type-B ports quantity2
Console portsDisplayPort, USB A
Console USB ports quantity4
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
HDCPYes
Design
Product colourBlack
Housing materialMetal
Power
Power sourceDC
Input voltage5 V
Sustainability
Compliance certificatesREACH, RoHS
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 75 °C
Operating relative humidity (H-H)0 - 90%
Weight & dimensions
Width184 mm
Depth35 mm
Height60 mm
Weight674 g
Packaging data
Package width235 mm
Package depth63 mm
Package height198 mm
Package weight860 g
Package typeBox
Packaging content
Cables includedDC
ManualYes
Logistics data
Harmonized System (HS) code85176200
