Description

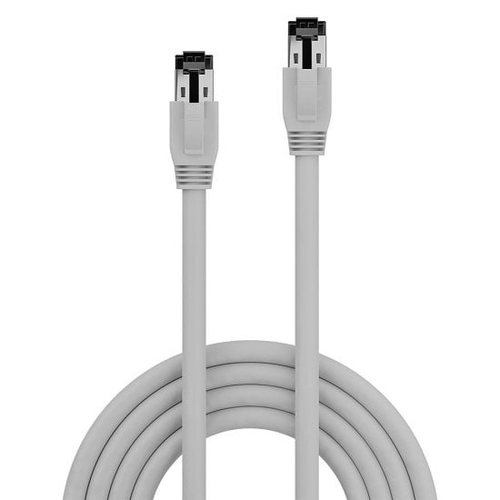

Lindy 2m Cat.8.1 S/FTP LSZH Cable, Grey, 2 m, Cat8.1, S/FTP (S-STP), RJ-45, RJ-45, Grey

Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T.

Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m

Specifications

BrandLINDY
Manufacturer part no.47444
Our part no.CG76765
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourGrey
Cable length2 m
Cable standardCat8.1
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel
Connector shieldingYes
Connector shield materialAluminium
Jacket materialLow smoke zero halogen (LSZH)
Conductor materialCopper
AWG wire size26
Frequency2000 MHz
Bend radius (min)6 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Certificates
Compliance certificatesREACH, RoHS
Weight & dimensions
Width12 mm
Depth38.5 mm
Height17 mm
Outer diameter7.5 mm
Packaging data

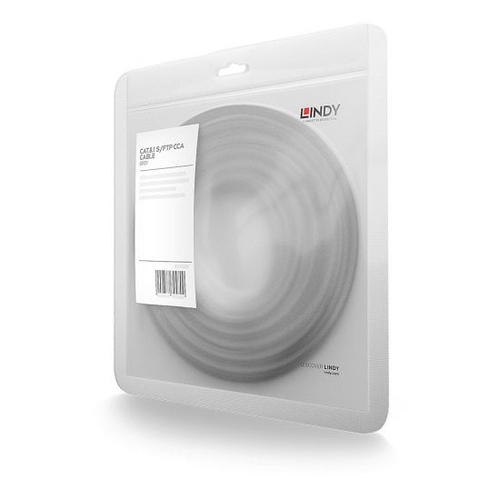

Package typePolybag
Technical details
Sustainability complianceYes
