Description

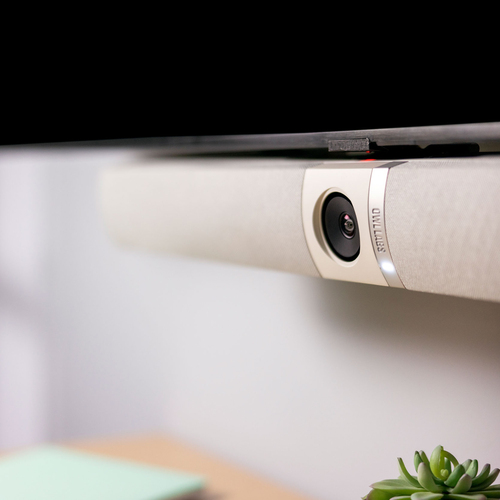

Owl Labs Owl Bar, Video collaboration bar, CMOS, 4K Ultra HD, 30 fps, Grey
Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.
Specifications
| Brand | OWL LABS |
|---|---|
| Manufacturer part no. | FRS100-2000 |
| Our part no. | CG82367 |
| EAN | 0850022203602 |
| Category | Networking › Video Conferencing |
| Weight | 5.3 kg |
| Performance | |
| Number of cameras | 1 |
| Product colour | Grey |
| Product type | Video collaboration bar |
| Video | |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 360p, 1080p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Output level | 83/1 dB |
| RMS rated power | 5 W |
| Microphone pick-up range | 5.48 m |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Camera | |
| Megapixel (approx.) | 48 MP |
| Camera type | Single camera |
| Sensor type | CMOS |
| Horizontal field of view | 114° |
| Vertical field of view | 73° |
| Microphone | |
| Microphone sensitivity | 69 dB |
| Microphone frequency | 100 - 10000 Hz |
| Microphone direction type | Omnidirectional |
| Number of microphones | 4 |
| Logistics data | |
| Country of origin | Vietnam |
| Harmonized System (HS) code | 8525.5000.00 |
| Computer system | |
| Processor family | Snapdragon |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS, Linux |
| Power | |
| Power source type | DC |
| Certificates | |
| Certified for Microsoft Teams | Yes |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 769 mm |
| Height | 76 mm |
| Weight | 1.88 kg |
| Packaging data | |
| Package width | 149 mm |
| Package depth | 820 mm |
| Package height | 162 mm |
| Package weight | 5 kg |
| Packaging content | |
| Packaging content | Owl Bar, table stand, 6' USB Type C Cable, 6' HDMI cable, power supply, AC line cord, QSG, table card english, table card french, safety/regulatory/warranty slipsheet, Owl card holder, Owl Connect card, Owl Labs sticker |
