Description

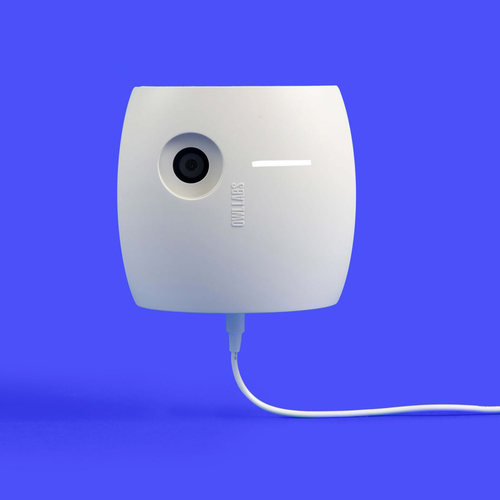

Owl Labs Whiteboard Owl, 13 MP, CMOS, Full HD, 4208 x 3120 pixels, 10 fps, 68°
Easily view the whiteboard no matter where you’re located with the Whiteboard Owl. Our dedicated whiteboard camera pairs with the Meeting Owl 3 or Meeting Owl Pro and features automatic whiteboard enhancement so remote participants don’t miss a thing. The Whiteboard Owl enables simultaneous viewing of the whiteboard along with 360° views of the room so discussions are inclusive and immersive.
Specifications
| Brand | OWL LABS |
|---|---|
| Manufacturer part no. | WBC100-2000 |
| Our part no. | CG82369 |
| EAN | 0850022203510 |
| Category | Networking › Video Conferencing |
| Weight | 1.1 kg |
| Camera | |
| Camera type | Single camera |
| Megapixel (approx.) | 13 MP |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Focal length range | 3.45 - 3.45 mm |
| Field of view (FOV) angle | 68° |
| Video | |
| HD type | Full HD |
| Maximum video resolution | 4208 x 3120 pixels |
| Maximum frame rate | 10 fps |
| Supported video modes | 360p, 720p, 1080p |
| Design | |
| Product colour | White |
| Country of origin | China |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Power | |
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Operating voltage | 12 V |
| Operating current | 1 A |
| Packaging content | |
| Power supply included | Yes |
| Cables included | AC |
| Quick start guide | Yes |

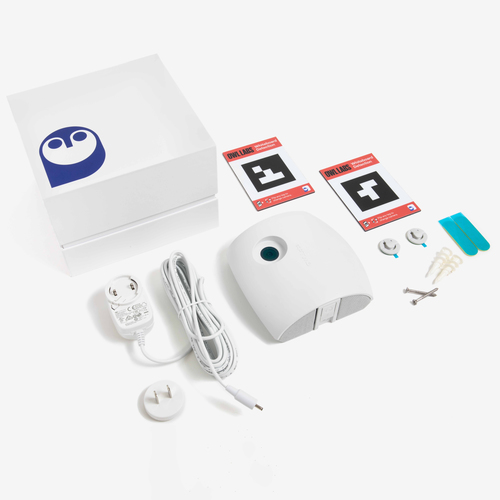

| Packaging content | Whiteboard Owl, Power cord, 2 magnetic whiteboard tags, Drywall screws and anchor, 2 adhesive mounting strips, Quick Start Guide |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Yes |
| Performance | |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Tripod mounting supported | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8525.5000.00 |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 50.8 mm |
| Height | 130 mm |
| Weight | 350 g |
| Packaging data | |
| Package width | 170.2 mm |
| Package depth | 177.8 mm |
| Package height | 127 mm |
| Package weight | 1.36 kg |
| Package type | Box |
