Description

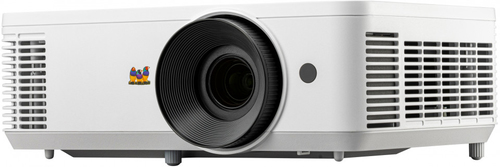

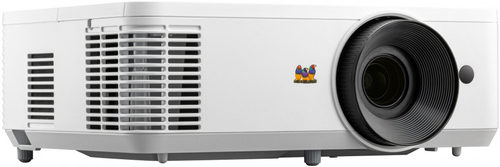

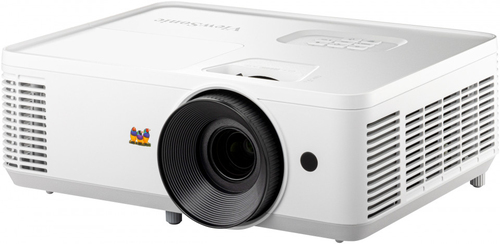

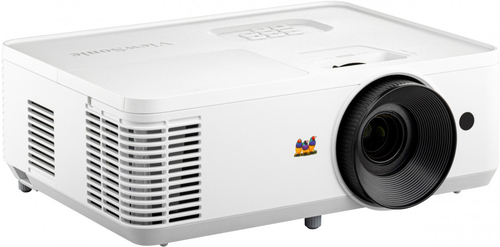

Viewsonic PA700S, 4500 ANSI lumens, SVGA (800x600), 12500:1, 762 - 7620 mm (30 - 300"), 1.18 - 13.17 m, 1.07 billion colours
The PA700S is ViewSonic’s high brightness SVGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.
High Brightness for Business & Education Environments Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.
Ultra-Large Screen with Lower Cost-per-inch The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.
Easy and Flexible Connection The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.
Present the Best with Vibrant Colors Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.
A Simpler Way to Update Projector Software Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.
*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.
USB Type A Power Supply A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | PA700S |
| Our part no. | CH01956 |
| EAN | 0766907019988 |
| Category | Projectors › Other (1302) |
| Weight | 4.5 kg |
| Projector | |
| Smart projector | No |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.18 - 13.17 m |
| Projector brightness | 4500 ANSI lumens |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 12500:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
| Lens system | |
| Focus | Manual |
| Focal length range | 21.85 - 24.01 mm |
| Aperture range (F-F) | 2.42 - 2.53 |
| Zoom capability | Yes |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
| Throw ratio | 1.94 - 2.16 |
| Offset | 115% |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| Noise level (economic mode) | 25 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
| HDCP version | 1.4 |
| Noise level | 34 dB |
| Air filter | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 3 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Education |
| Product type | Standard throw projector |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 309 mm |
| Depth | 234 mm |
| Height | 115 mm |
| Weight | 2.7 kg |
| Package width | 400 mm |
| Package depth | 168 mm |
| Package height | 337 mm |
| Package weight | 3.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Warranty card | Yes |
| Technical details | |
| Image lag time | 33.2 ms |
| Logistics data | |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet gross height | 184.5 cm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
