SilverNet SIL 73101P network media converter Internal 1000 Mbit/s Black

Description

SilverNet SIL 73101P, 1000 Mbit/s, 1000Base-TX, 1000Base-X, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE..., Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-TX

To ensure the SIL 73101P can withstand harsh environments, the enclosure plays a crucial role in meeting industrial-grade standards. Unlike steel or iron, aluminium has several advantages that make it a widely used metal material.

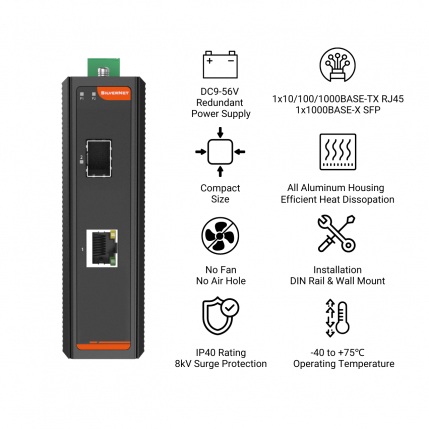

The SIL 73101P is a rugged Industrial Fibre Media Converter designed to operate reliably in harsh environments. It features a fanless design and low power consumption, which eliminates the need for maintenance. Additionally, mature technology and open network standards enable the SIL 73101P to operate efficiently at both low and high temperatures. Moreover, it is resistant to electric interference, salt fog, vibration, and shocks, making it suitable for various applications. The SIL 73101P also includes redundant dual power supplies, which enhances its reliability for always-on connections.

The SIL 73101P supports fibre-optic link capacity, which allows network deployment to extend from 550 meters to 2 kilometres for multi-mode fibre and up to 10/20/40/60/80/120 kilometres for single-mode or WDM fibre. Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements, making it ideal for applications within enterprise data centres and distributed systems.

Specifications

BrandSILVERNET
Manufacturer part no.SIL 73101P
Our part no.CH09739
EAN5060693982743
CategoryNetworking › Transceivers & SFPs
Weight0.4 kg
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-TX, 1000Base-X
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ab
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technology1000BASE-X
Data transfer rate1000 Mbit/s
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (1 Gbps)1488000 pps
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Performance
Maximum transfer distance160000 m
Wavelength-division multiplexing (WDM)Yes
Features
InternalYes
Plug and PlayYes
LED indicatorsLink, Power
Product colourBlack
Housing materialAluminium
International Protection (IP) codeIP40

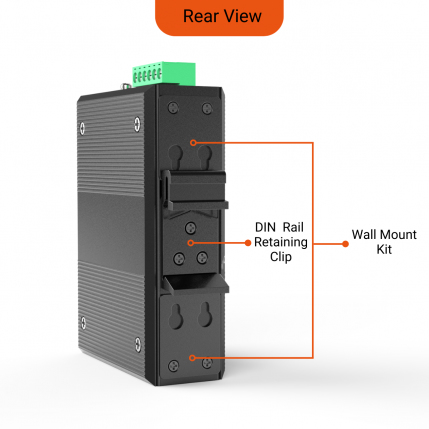

DIN rail mountingYes
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSFP
Power over Ethernet (PoE) ports quantity1
Power over Ethernet plus (PoE+) ports quantity1
Terminal block includedYes
Terminal block portYes
Power
Input voltage48 - 56 V
Output voltage48 V
Power consumption (typical)2 W
Power consumption (max)4 W
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget30 W
External power adapterYes
Power plug typeType C
Weight & dimensions
Width35 mm
Depth90 mm
Height120 mm
Weight350 g
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 90%
Packaging content
Quick installation guideYes
Packaging data
Package width150 mm
Package depth168 mm
Package height50 mm
Package weight52 g
Certificates
SafetyEN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508
CertificationFCC Part15 Class A CE EMC/LVD RoHS EN61000 4 2 (ESD):LEVEL 4 IEC 6100 4 2 (EFT):LEVEL 4 IEC 6100 4 2 (Surge): LEVEL 4 IEC 6100 4 2 (CS) LEVEL 3 IEC 61000 4 2(PFMP) : LEVEL 5 EN61000 4 3 (RS):LEVEL 4 IEC60068 2 27 IEC60068 2 6 IEC60068 2 31
Logistics data
Country of originUnited Kingdom
