Description

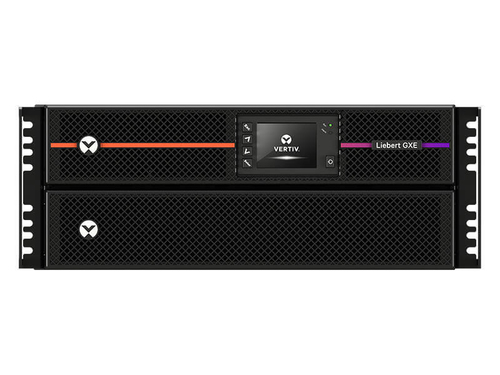

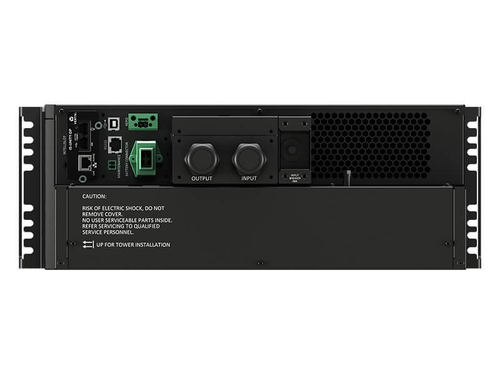

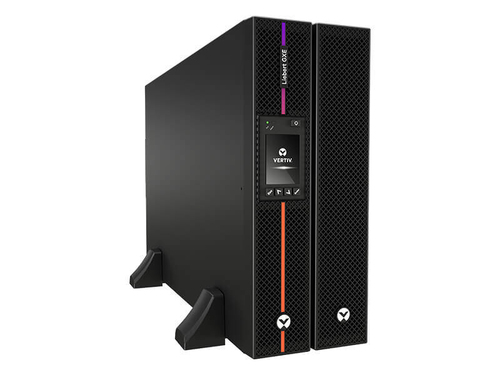

Vertiv Liebert GXE3-10KIRT5UXL, Double-conversion (Online), 10 kVA, 10000 W, Pure sine, 178 V, 288 V
The Vertiv Liebert GXE UPS is an affordable, efficient UPS designed for delivering best-in-class power protection to equipment at the edge of networks or in remote sites. This 10000 VA UPS offers online double conversion solution. Its unity output power factor (1.0) enables continuous and reliable power to more connected devices. The high efficiency in both online and ECO modes of operation (up to 98% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. Additional external battery cabinets provide scalable runtime for those applications requiring longer period of backup in case of AC mains failures. This single-phase UPS can be mounted as a tower or placed inside a rack cabinet, with a gravity sensing LCD display to allow rack/tower configurations. It has remote management capability with optional network management cards. With proven reliability, it is ideal for critical applications in financial, government, and manufacturing industries.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | GXE3-10KIRT5UXL |
| Our part no. | CH14116 |
| EAN | 0767041034844 |
| Category | Power & UPS › UPS |
| Weight | 62 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 178 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 600 J |
| Efficiency (On-line mode) | 94% |
| Efficiency (ECO mode) | 98% |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| EMI/RFI noise filtering | 58 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hardwire, Terminal |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Design | |
| Form factor | Tower |
| Rack capacity | 5U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Certification | CE, UKCA, Morocco, RCM, CB report, EAC |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | USB cable |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 700 mm |
| Height | 217 mm |
| Weight | 80 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 800 mm |
| Package height | 530 mm |
| Package weight | 102 kg |
| Logistics data | |
| Country of origin | China |
| Other features | |
| Nominal input voltage | 230 V |
