Description

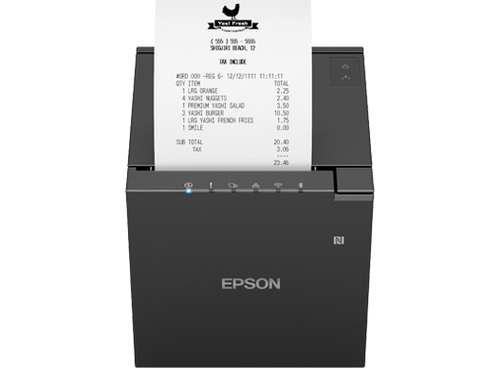

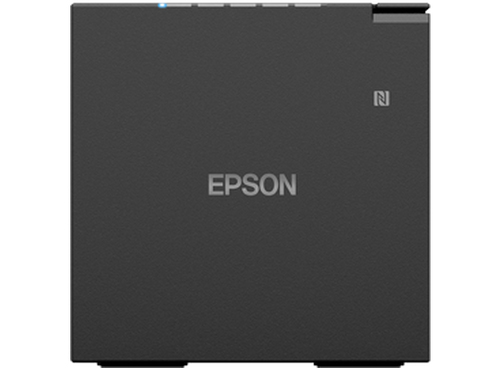

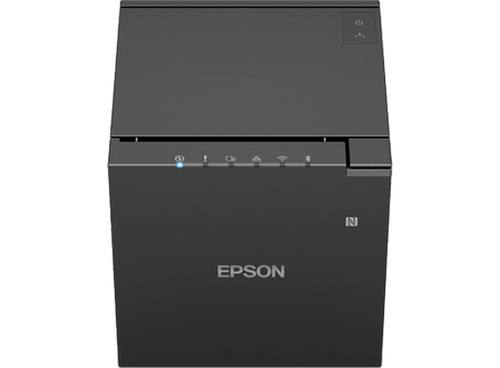

Epson TM-m30III (152A0): Wi-Fi + Bluetooth Model, Black, UK, Thermal, POS printer, 203 x 203 DPI, 300 mm/sec, 300 mm/sec, Graphic, Barcode, 2D barcode, Text
Ultra-compact receipt printer (Wireless) Based on a stylish and ultra-compact design, and with a host of advanced features, the TM-m30III is a perfect combination of mobility, connectivity, reliability and ease-of-use. Providing cost-effective and reliable receipt printing in any environment where space is an issue, it’s designed to meet the needs of a wide range of growing businesses.
Space-efficient , robust and reliable With an all-new, highly compact, super-sleek design, which reflects today’s demand for a clean and modern aesthetic, the TM-m30III is also robust and reliable, with a range of connectivity options.
Easy connectivity with integrated Wi-Fi Including a USB Type-C PD (Power Delivery) tablet port, the TM-m30III (Wireless) supplies up to 18W of power, and also offers integrated (as opposed to via a USB port) Wi-Fi and Bluetooth functionality. The printer also provides 20Mbps network tethering, which allows the wired network connection to the printer to be shared.
Built for tough environments Offering protection against the harmful ingress of liquids to IPX2 standards, the TM-m30III has also been designed with easy cleaning in mind, and is externally treated with an ISO22196-certified antibacterial material, making it ideal for challenging environments such as kitchens.
Easy, reliable code scanning The TM-m30III includes superior de-curl functionality, able to produce flattened receipts with no reduction in print speed. This is particularly useful in applications where code-scanning is important, such as event ticketing, or for producing documents that require a signature.
Boosts speed and efficiency Offering reliable paper roll near-end detection, which operates with the printer oriented for either front or top paper exit positions, the TM-m30III is ideal for semi-attended applications, such as kiosks or self-checkout, where prompt paper replacement avoids unnecessary downtime.
Easy set-up, excellent support The printer is supplied with a “quick start” sheet that offers a simple and effective setup guide, while scannable QR-codes link to videos that cover all processes, from unpacking to power on, as well as basic configuration tasks. Expert Epson support is available for iOS, Android and Windows.
Specifications
| Brand | EPSON |
|---|---|
| Manufacturer part no. | C31CK50152A0 |
| Our part no. | CH17533 |
| EAN | 8715946720715 |
| Category | Label & Receipt Printers › Other (5805) |
| Weight | 2.3 kg |
| Printing | |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 300 mm/sec |
| Print speed (receipt) | 300 mm/sec |
| Printing characters | Graphic, Barcode, 2D barcode, Text |
| Print technology | Thermal |
| Type | POS printer |
| Paper handling | |
| Supported paper width | 58 - 80 mm |
| Roll dimensions | Roll 57mm, Roll 80mm |
| Ports & interfaces | |
| USB port | Yes |
| Bluetooth | Yes |
| Connectivity technology | Wired & Wireless |
| Near Field Communication (NFC) | Yes |
| Interface | USB 2.0-A, USB Type-C, Ethernet interface (100 Base-TX / 10 Base-T), Micro SD Card Slot, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, Drawer kick-out, Wi-Fi Direct, Bluetooth, Near Field Communication (NFC) |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Features | |
| Built-in barcodes | Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417 |
| Sound pressure level (printing) | 53 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 2.2 million cuts |
| Paper save function | Yes |
| Tablet charge & sync | Yes |
| Print head life | 150 km |
| Country of origin | Philippines |
| Mounting position | Horizontal/Vertical |
| Wall mountable | Yes |
| Built-in sensors details | Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Paper Jam Sensor, Receipt near-end sensor, Receipt paper sensor |
| Design | |
| Product colour | Black |
| Power | |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mobile operating systems supported | Android, iOS |
| Pre-installed software | Server Direct Print |
| Weight & dimensions | |
| Width | 127 mm |
| Depth | 127 mm |
| Height | 130 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 127 mm |
| Package depth | 127 mm |
| Package height | 130 mm |
| Package weight | 2.2 kg |
| Technical details | |
| Font styles | ANK, Traditional Chinese, Simplified Chinese |
| Box contents | AC adapter, AC cable, Main unit, Paper roll spacer, Quick Start Guide, Roll paper, Setup guide |
| Paper size roll paper | 79.50 ± 0.50 (W) mm x dia 83.00 mm,<br>57.50 ± 0.50 (W) mm x dia 83.00 mm |
| Print speed | Max. 300 mm/sec at 203 x 203 DPI ( printing width80 mm) |
| Technology | Thermal Line |
| Voltage | 24 V |
| Compliance certificates | CE |
| Power consumption | Mean:0.1 A, Mean Receipt unit: approx.1.8 A |
| Other features | |
| Buffer size | 4 KB |
| Mean cycles between failures (MCBF) | 65000000 |
| Print head life (receipt unit) | 150 km |
