Description

Eaton P054-03M-EU, 3 m, CEE7/7, IEC C13, H05VV-F, 250 V, 10 A

Connects a computer, server or drive with a C14 plug to a Schuko wall outlet.

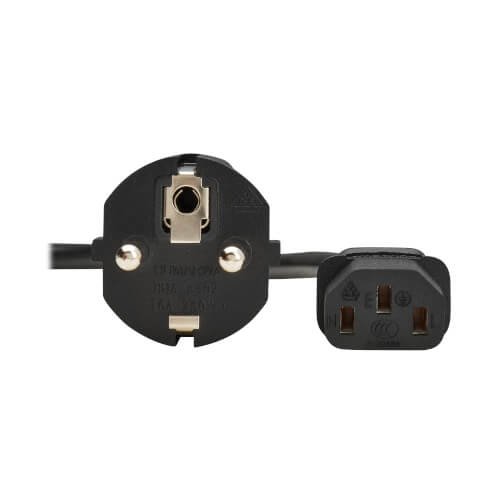

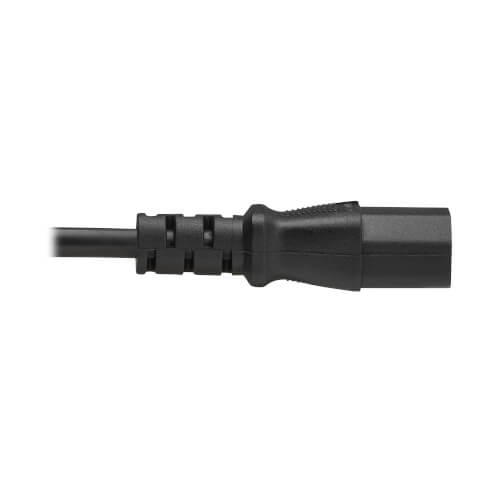

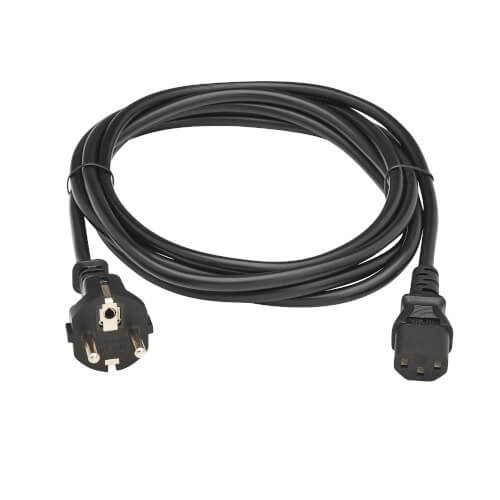

Power Cord Connects Data Center Equipment to Reliable AC Power This VDE-compliant power cable connects a computer, server or drive with a C14 plug to a PDU, UPS or surge protector with Schuko outlets. Or you can extend an existing power connection up to three meters (9.8 feet). The P054-03M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

Specifications

BrandEATON
Manufacturer part no.P054-03M-EU
Our part no.CH34843
EAN0037332280923
CategoryCables & Adapters › Patch Cables & Power
Weight0 kg
Features
Product colourBlack
Connector 1 genderMale
Connector 2 genderFemale
Cable length3 m
Connector 1CEE7/7
Connector 2IEC C13
Connector 1 form factorStraight
Connector 2 form factorStraight
Jacket materialPolyvinyl chloride (PVC)
AWG wire size17
Cable typeH05VV-F
Number of conductors3
Power
Input voltage250 V
Input current10 A
Operational conditions
Operating temperature (T-T)-15 - 70 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%
Certificates
CertificationCE (Europe); REACH; RoHS; UKCA
Weight & dimensions
Diameter7 mm
Packaging data
Quantity per pack1 pc(s)
Package width203 mm
Package depth13 mm
Package height254 mm
Package weight195 g
