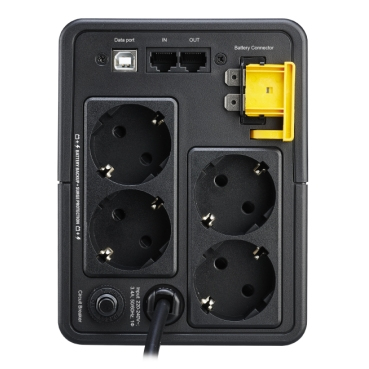

APC BXS950MI-GR uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 410 W 4 AC outlet(s)

Description

APC BXS950MI-GR, Line-Interactive, 0.75 kVA, 410 W, Pseudo sine, 140 V, 300 V

Specifications

BrandAPC
Manufacturer part no.BXS750MI-GR
Our part no.CH43429
CategoryPower & UPS › UPS
Weight0 kg
Features
UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power410 W
WaveformPseudo sine
Input operation voltage (min)140 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating273 J
Response time10 ms
Input power factor0.63
Noise level40 dB
Ports & interfaces
AC outlet typesCEE
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Typical backup time at full load1 min
Typical backup time at half load8.5 min
Battery life (max)5 year(s)
Battery recharge time8 h
Design
Form factorTower
Cable length1.22 m
Product colourBlack
LED indicatorsYes
International Protection (IP) codeIP20
CompatibilityEN/IEC 62040-1:2019/A11:2021
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
Certificates
Compliance certificatesCB, CE, REACH, RoHS
Packaging content
ManualYes
Sustainability
Sustainability complianceYes
Doesn't containMercury
Weight & dimensions
Width120 mm
Depth355 mm
Height160 mm
Weight5.4 kg
Packaging data
Package width235 mm
Package depth455 mm
Package height270 mm
Package weight6.6 kg
Other features
Nominal input voltage230 V
