Description

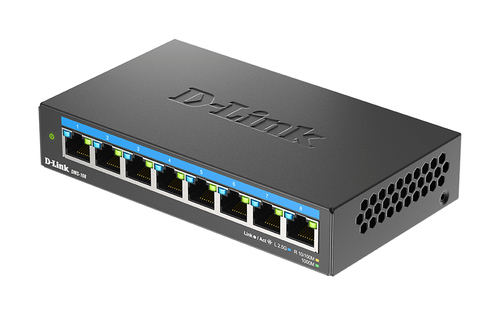

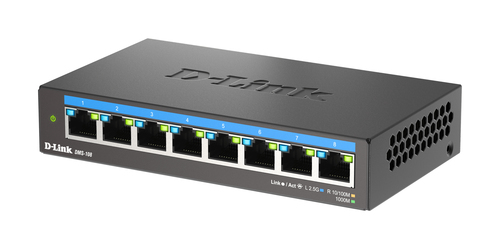

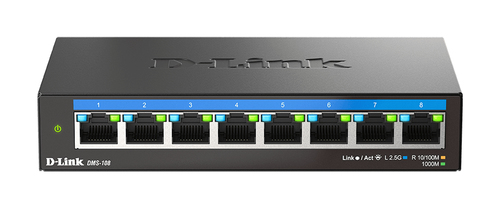

D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch, Unmanaged, L2, 2.5G Ethernet (100/1000/2500)

More ports. Multi-Gigabit Ethernet. Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.

2.5 Gigabit Ethernet Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking Easily upgrade or extend your home or small business network

Compact Metal Housing Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design Automatic power saving features to reduce power usage

Plug-and-pay convenience. The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.

Effortless traffic optimisation. With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.

Designed for life, built to last. The DMS-108 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving. The DMS-108 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.

Ready for Wi-Fi 6. You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Specifications

BrandD-LINK
Manufacturer part no.DMS-108/E
Our part no.CH92535
EAN0790069469459
CategoryNetworking › Managed Switches
Weight0.5 kg
Management features
Switch typeUnmanaged
Switch layerL2
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity8
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Auto MDI/MDI-XYes
MAC address auto-learning supportedYes
Data transmission
Switching capacity40 Gbit/s
Forwarding rate29.76 Mpps
MAC address table4000 entries
Store-and-forwardYes
Number of queues8
Packet buffer memory8.1 MB
Security
IGMP snoopingYes
Multicast features
Multicast supportYes
Design
StackableYes
Product colourBlack
LED indicatorsActivity, Link, Power
Performance
FanlessYes
Mean time between failures (MTBF)724033.96 h
Power
Power sourceDC
Power supply includedYes
DC input voltage12 V
Input current1 A
Power consumption (typical)8.586 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation29.3 BTU/h
Weight & dimensions
Width145 mm
Depth82 mm
Height28 mm
Weight343 g
Sustainability
Sustainability complianceYes
Certificates
Compliance certificatesBSMI, CE, Low Voltage Directive (LVD), RoHS
