Description

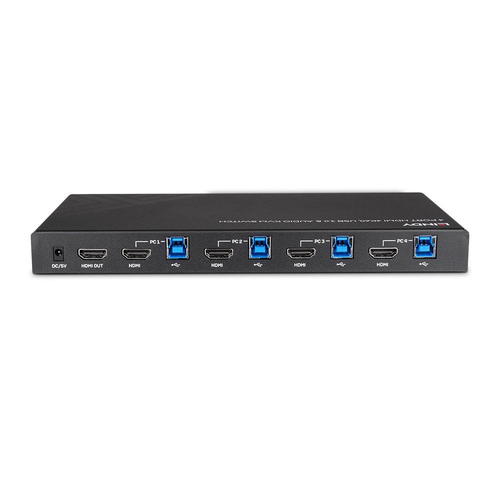

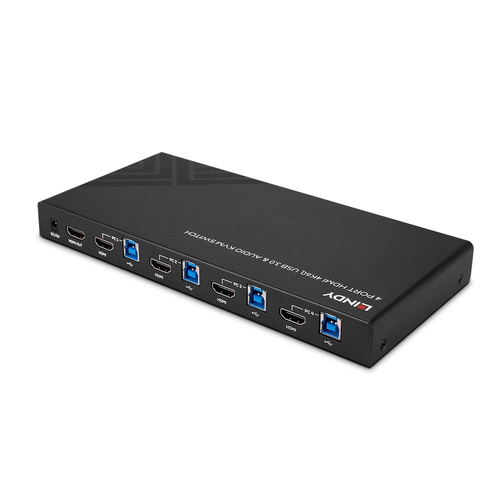

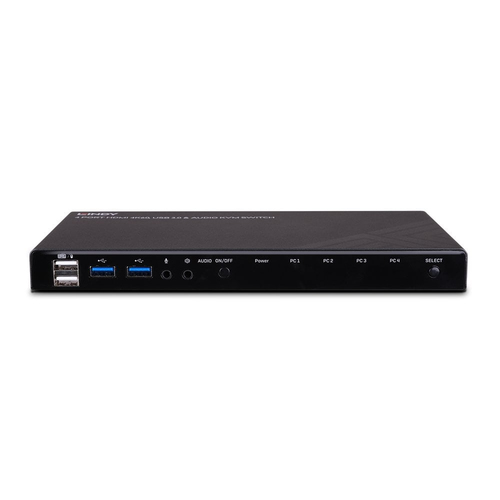

Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch, 4096 x 2160 pixels, 4K Ultra HD, Black
The Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while two additional USB devices such as printer, scanner or hard drive can be connected to the USB 3.0 ports on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 39313 |
| Our part no. | CI11255 |
| EAN | 4002888393133 |
| Category | Networking › KVM & Extenders |
| Weight | 0.9 kg |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 4 |
| Console HDMI ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| Audio channels | 2.0 |
| HDCP version | 2.2 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Input current | 3 A |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 80% |
| Weight & dimensions | |
| Width | 231 mm |
| Depth | 108 mm |
| Height | 23 mm |
| Weight | 710 g |
| Packaging data | |
| Package width | 292 mm |
| Package depth | 248 mm |
| Package height | 55 mm |
| Package weight | 980 g |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
