Description

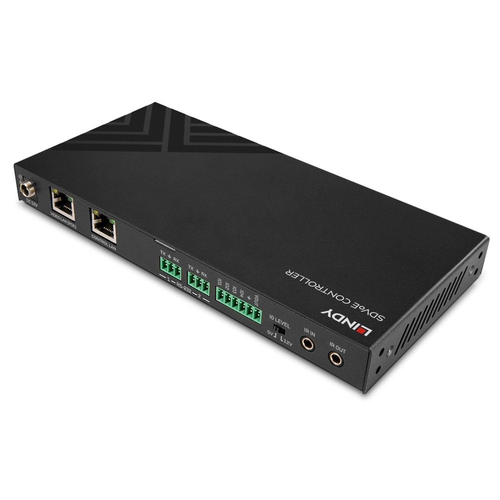

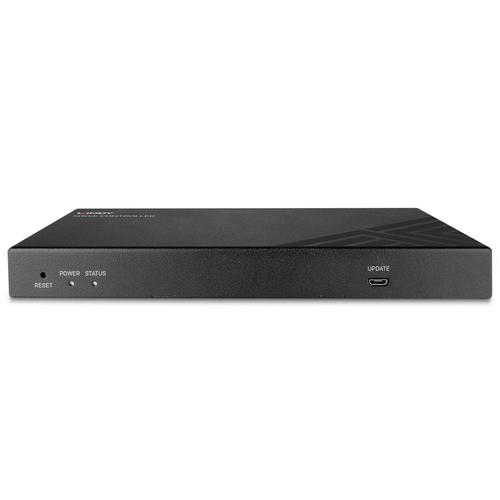

Lindy SDVoE Controller, 3840 x 2160 pixels, AV repeater, 100 m, Wired, Black
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.

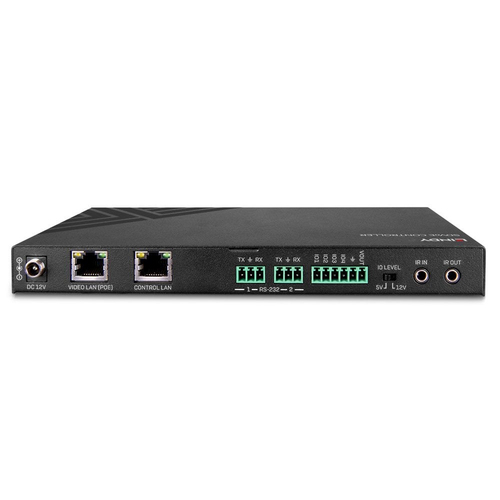

Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 38364 |
| Our part no. | CI11295 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0 kg |
| Features | |
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Supported network protocols | IP |
| Material | Metal |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| USB ports quantity | 1 |
| USB connector type | Micro-USB |
| RS-232 input ports | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| Power source type | DC |
| Operating voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 204 mm |
| Depth | 98.5 mm |
| Height | 21.5 mm |
| Weight | 760 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 255 mm |
| Package depth | 157 mm |
| Package height | 77 mm |
| Package weight | 960 g |
| Package type | Box |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Technical details | |
| Special features | API support, 4 channel GPIO control ports (5V/12V optional level) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
