Description

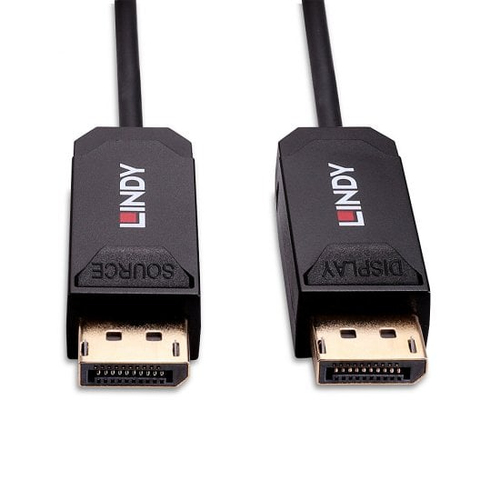

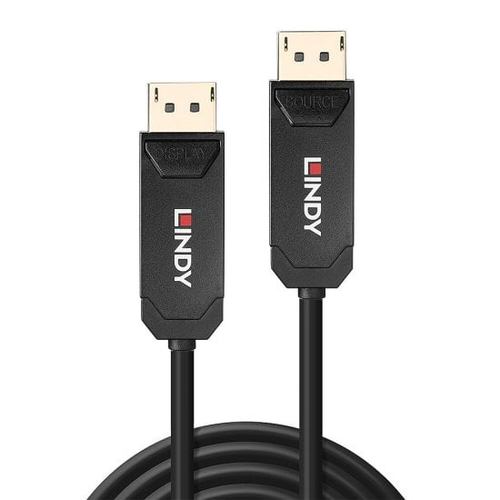

Lindy 30m Fibre Optic Hybrid DP 2.0 UHBR10 Cable, 30 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
Lindy's range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.Combining the flexibility and high EMI and RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.
The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.
With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 38523 |
| Our part no. | CI11313 |
| EAN | 4002888385237 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0.7 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 2.0 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 60 Hz |
| Connector 1 lockable | No |
| Connector 2 lockable | No |
| Cable length | 30 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 24 Gbit/s |
| Bandwidth | 40 MB/s |
| Contact material | Gold |
| Colour sampling | 4:2:2, 4:4:4, 4:2:0 |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS, UKCA |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Bend radius (min) | 5 cm |
