Description

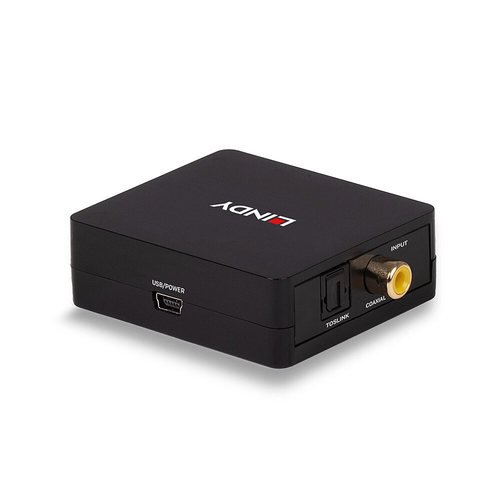

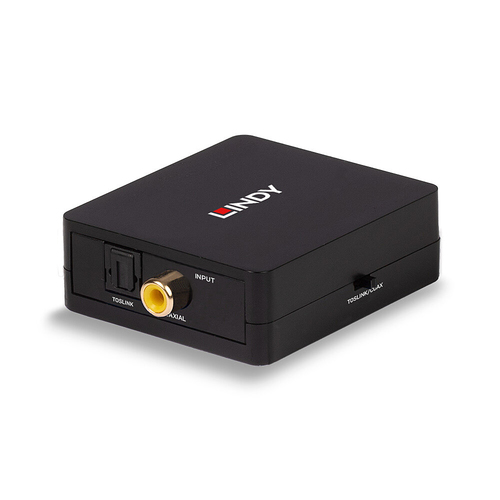

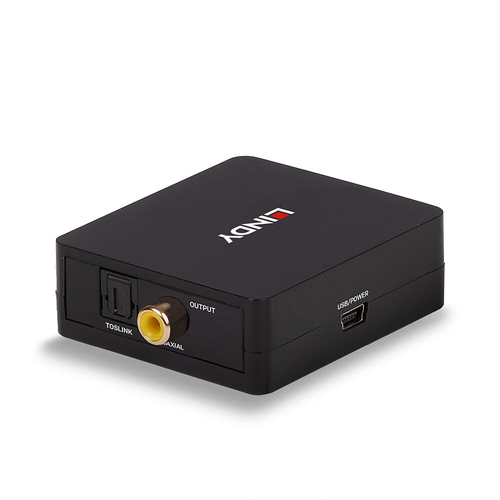

Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter, 192kHz, 5 V, 60.5 mm, 54 mm, 20.5 mm, 40 g

The Lindy SPDIF Converter and Repeater allows the user to input digital audio through a Coaxial or optical port and output digital audio simultaneously through Coaxial and optical ports, for dual audio functionality, avoiding the need for two separate audio converters, and a high resolution listening experience of movies, games and music.

Featuring Digital Coaxial and Toslink ports as both input and output connections, this converter is perfect for converting Coaxial signals to optical, great for connecting DVD players or legacy games consoles to home cinema receivers or soundbars, or when connecting Blu-Ray players and games consoles to some surround sound systems or amplifiers via Optical to Coaxial conversion. With support for a hi-res sampling frequency of up to 24 bit / 192kHz, music can be heard exactly how the artist and sound engineers intended, with greater detail and clarity, while Dolby Digital and DTS 5.1 channel support also ensures movies are heard with dynamic multi-channel audio, for a true home cinema experience.

The dual input functionality also doubles up as a repeater, great for extending digital audio signals over longer distances that can't be reached using only one digital coaxial or Toslink cable. The converters input selector switch, allowing the input signal to be easily changed provides simple control for both home users and professional installers, while the converter's's 'Plug and Play' functionality ensures minimum hassle connectivity within an audio ecosystem. The converters minimalist, compact design means it can also be hidden out of sight or integrated into current home cinema installations.

Specifications

BrandLINDY
Manufacturer part no.70457
Our part no.CI11340
CategoryCables & Adapters › VGA & Video Adapters
Weight0 kg
Inputs
Digital audio coaxial in1
Digital audio optical in1
Sample frequencies192kHz
Outputs
Digital audio coaxial out1
Digital audio optical out1
Technical details
ChipsetMIC-74HC04
Input impedance75 Ω
Output impedance75 Ω
Bit rate24 bit
Product colourBlack
Audio recording formatsLPCM
Housing materialPlastic
Sustainability complianceYes
Signal-to-Noise Ratio (SNR)142 dB
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
Power
Operating voltage5 V
Weight & dimensions
Width60.5 mm
Depth54 mm
Height20.5 mm
Weight40 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Packaging data
Quantity1
ManualYes
Package width133 mm
Package depth105 mm
Package height24 mm
Package weight80 g
