Description
Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg, 35 kg, 106.7 cm (42"), 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, 0 - 13 mm

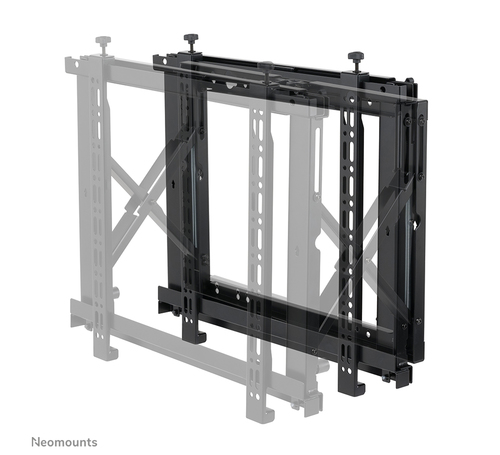

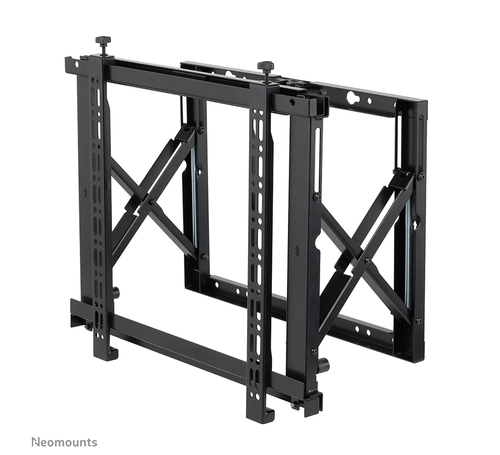

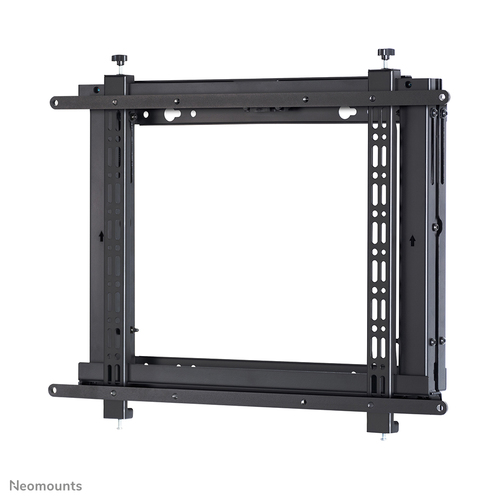

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL95-800BL1 |
| Our part no. | CI23312 |
| EAN | 8717371440541 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 9.8 kg |
| Mounting | |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 13 mm |
| Swivelling | Yes |
| Cable management | No |
| Tilt adjustment | Yes |
| Height adjustment | 1.3 cm |
| Depth adjustment | 4 mm |
| Width adjustment | 4 cm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 26.6 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Accepts padlock | No |
| Weight & dimensions | |
| Width | 620 mm |
| Depth | 84 mm |
| Height | 510 mm |
| Weight | 7.72 kg |
| Width adjustment range | 0 - 40 mm |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 110 mm |
| Package height | 620 mm |
| Package weight | 9.8 kg |
| Package type | Box |
| Technical details | |
| Package net weight | 9.8 kg |
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Warranty period | 5 year(s) |
| Other features | |
| Country of origin | China |
| Depth adjustment range | 0 - 4 mm |
| Logistics data | |
| Master (outer) case net weight | 8.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case height | 620 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 1 pc(s) |
