Description

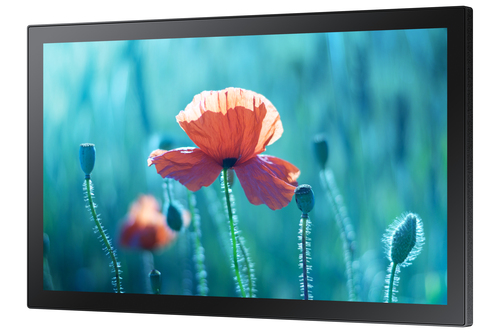

Samsung QB13R-TM, Interactive flat panel, 33 cm (13"), LED, 1920 x 1080 pixels, Wi-Fi, 16/7
Specifications
| Brand | SAMSUNG |
|---|---|
| Manufacturer part no. | LH13QBRTMGCXEN |
| Our part no. | CI28703 |
| EAN | 8806094965476 |
| Category | Monitors & Displays › Large Format Displays |
| Weight | 2 kg |
| Display | |
| Panel type | ADS |
| Display diagonal | 33 cm (13") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Multi-touch | Yes |
| Response time | 30 ms |
| Contrast ratio (typical) | 600:1 |
| Contrast ratio (dynamic) | 10000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.153 x 0.153 mm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 48 - 75 Hz |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 45% |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| DC-in jack | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.31 cm |
| Bezel width (side) | 1.31 cm |
| Bezel width (top) | 1.31 cm |
| Bezel colour | Charcoal Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 27.5 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 4.0 |
| Weight & dimensions | |
| Display width | 322 mm |
| Display depth | 29.8 mm |
| Display height | 193.5 mm |
| Display weight | 1.1 kg |
| Packaging data | |
| Package width | 376 mm |
| Package depth | 248 mm |
| Package height | 132 mm |
| Package weight | 2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class B 60950-1, 62368-160950-1, 62368-1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Technical details | |
| Audio out (mini jack) | 1 |
| Other features | |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RJ-45 input ports | 1 |
