Description
Manhattan Wall Mount for TV & Monitors (Tilt), For screens: 60" to 120", VESA compatibility: all between 50x50mm to 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, LFD, Bracket, 3.05 m (120"), 50 x 50 mm, 900 x 600 mm, -10 - 10°, Steel, Black

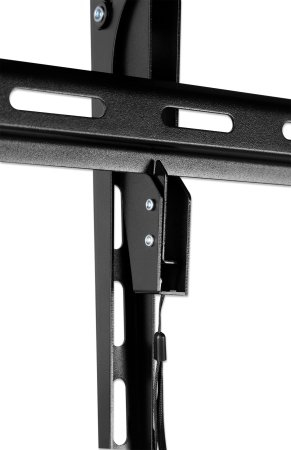

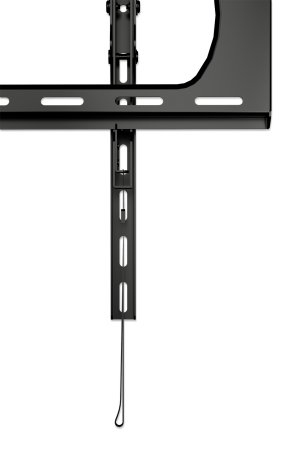

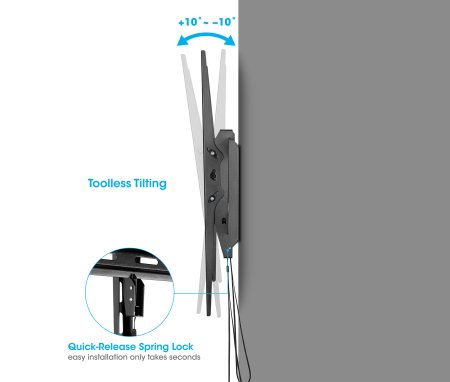

Ultra Heavy-Duty XXL Tilting TV Wall Bracket - adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless -10 to 10° tilt adjustment for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 461931 |
| Our part no. | CI28900 |
| EAN | 0766623461931 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 5 kg |
| Mounting | |
| Maximum weight capacity | 120 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 3.05 m (120") |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 900 x 600 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600,1050 x 500,1100 x 100,1100 x 200,1200 x 400,1600 x 600 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Orientation | Landscape |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 1005 mm |
| Depth (max) | 60.2 cm |
| Height | 80 mm |
| Weight | 4.29 kg |
| Packaging data | |
| Quantity per pack | 1 pair(s) |
| Package weight | 4.86 kg |
