i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black

Enhance your notebook, tablet or smartphone, by utilising USB-C or USB-A connectivity. This Thunderbolt-compatible dual monitor docking station features the DisplayLink DL3900 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 100W.

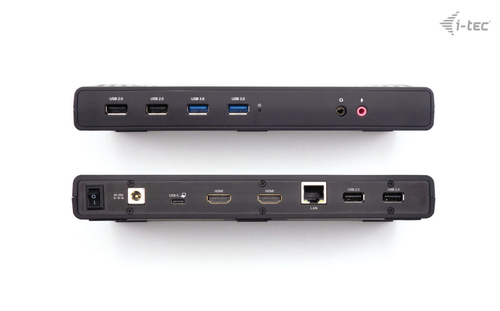

2x USB-A 3.0 ports and 4x USB 2.0 make it easy to connect all of your existing hardware and the Gigabit Ethernet RJ45 port provides a reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

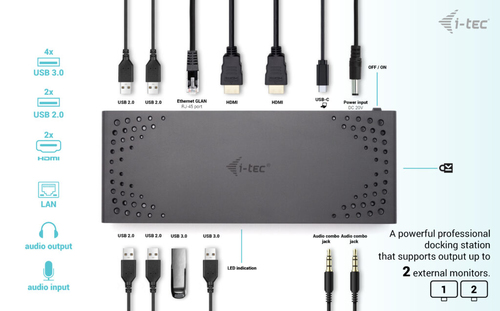

- Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included) - 2x HDMI support the connection of max. 2 monitors (max. resolution 2x FHD/60 Hz or single 1440p/50 Hz) - 6x USB-A ports (2x USB 3.0 and 4x USB 2.0) for connecting all existing hardware and accessories. - Fast network and Internet access with Gigabit Ethernet RJ-45 port, supporting 10/100/1000 Mbps speeds - Kensington lock slot to discourage theft - Separate 3.5 mm audio input/output jacks - Power-saving on / off switch allowing a quick and easy reset of the docking station. - 1x power supply input – external power adapter (output: DC 20V/6.75A) - Cross-brand and cross-platform compatibility

If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported

Specifications

BrandI-TEC
Manufacturer part no.CADUALHDMIDOCKPDUK
Our part no.CI30757
EAN8595611706523
CategoryDocks, Bags & Racks › Docking Stations
Weight1.2 kg
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
HDMI ports quantity2
Microphone inYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Card reader integratedNo
Data transfer rate5 Gbit/s
Number of displays supported2
Maximum refresh rate60 Hz
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Product colourBlack
Power
Output voltage20 V
Output current6.75 A
Compatible power plug typesUK
Power cable length1.7 m
USB cable length1 m
Software
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid, ChromeOS
Weight & dimensions
Width224 mm
Depth88 mm
Height27 mm
Weight314 g
Packaging data
Package width250 mm
Package depth250 mm
Package height50 mm
Package weight1.17 kg
Packaging content

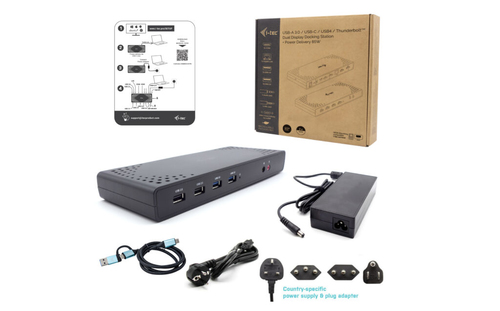

Cables includedAC, DC, USB Type-C to USB Type-A
AC adapter includedYes
ManualYes
