Description

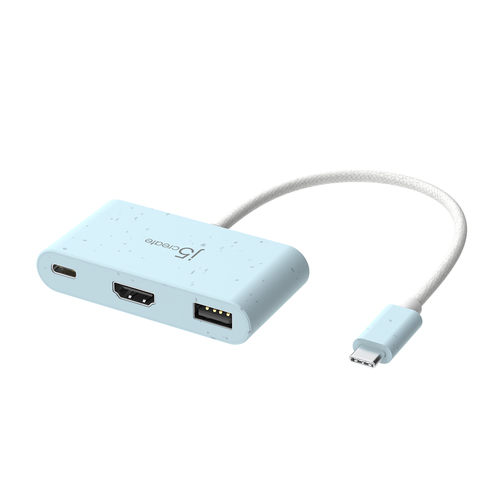

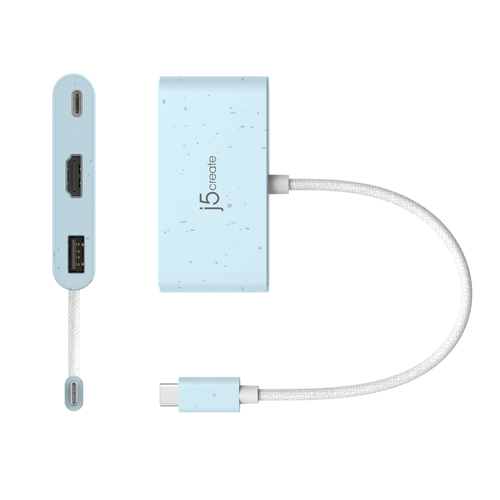

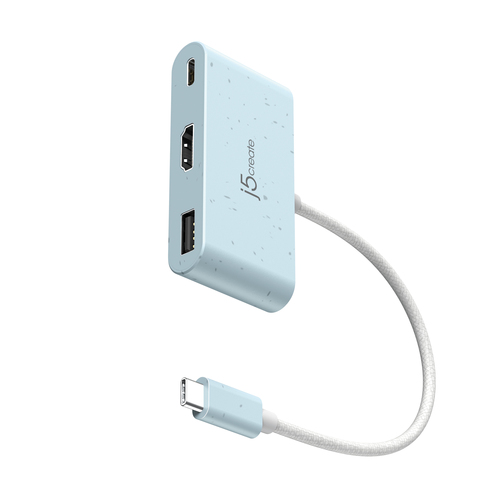

j5create JCA379EC - USB-C® to HDMI™ & USB™ Type-A with Power Delivery, USB Type-C, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, 5000 Mbit/s, Cyan, 100 W, • Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™...

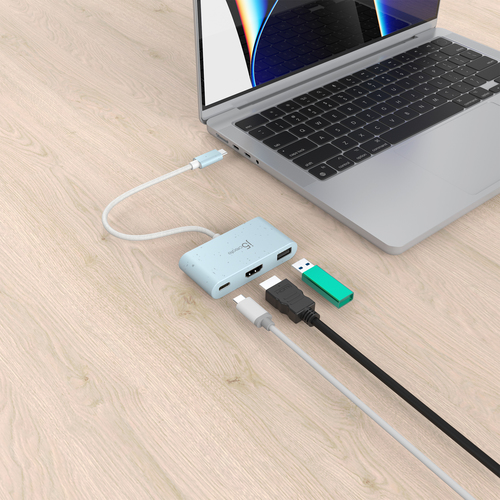

Add extra functionality to your laptop with the JCA379E Eco-Friendly USB-C® to HDMI™ & USB™ Type-A with Power Delivery. This device allows you to add an additional USB™ Type-A, HDMI™ monitor, and USB-C® that can be charged through your USB-C® port. The USB™ Type-A SuperSpeed port gives you data transfer rates up to 5Gbps. The HDMI™ port supports resolutions up to 4K. Equipped with a USB-C® Power Delivery 3.0 charging port, it offers charging up to 100W when connected to a USB-C® power adapter.
Specifications
| Brand | J5CREATE |
|---|---|
| Manufacturer part no. | JCA379EC-N |
| Our part no. | CI35242 |
| EAN | 4712795087529 |
| Category | Networking › USB Hubs & Adapters |
| Weight | 0 kg |
| Ports & interfaces | |
| Host interface | USB Type-C |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Product colour | Cyan |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Number of displays supported | 1 |
| Plug and Play | Yes |
| Compatible products | • Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™ Power Delivery over USB-C® to support charging to a mobile device. |
| Power | |
| Input voltage | 20 V |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 4.5 A |
| Power plug type | Type C |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS, iOS |
| Minimum system requirements | • Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™ Power Delivery over USB-C® to support charging to a mobile device. |
| Weight & dimensions | |
| Width | 37.8 mm |
| Depth | 15.2 mm |
| Height | 75.4 mm |
| Weight | 40.8 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 189.9 mm |
| Package depth | 85 mm |
| Package height | 17.5 mm |
| Package weight | 90.5 g |
| Package type | Box |
| Packaging content | |
| Packaging content | • 1 - JCA379E Eco-Friendly USB-C to HDMI & USB Type-A with Power Delivery • 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 47 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
